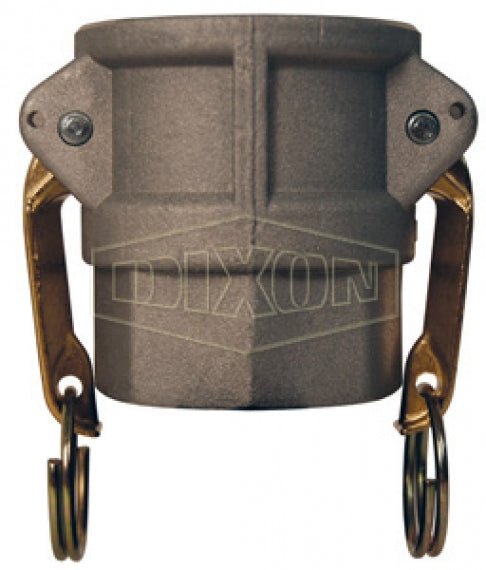

G125-DC-AL by Dixon Valve | Global Cam & Groove Dust Cap | Type DC | 1-1/4" Body Size | A380 Permanent Mold Aluminum (Brass Handles)

Name: G125-DC-AL by Dixon Valve | Global Cam & Groove Dust Cap | Type DC | 1-1/4" Body Size | A380 Permanent Mold Aluminum (Brass Handles)
Brand: Dixon
SKU: G125-DC-AL Dixon
Price: 12.69 USD
Availability: InStock

Save $1.59

$14.28

$14.28 - $14.28

$14.28

$12.69

$12.69 - $12.69

$12.69

Dixon Valve
Global Cam & Groove | Type DC Dust Cap

Designed for use with liquids.

Quantity

Specifications for Variant SKU: G125-DC-AL Dixon
Cam Type:	Type DC
Ends Configuration:	1-1/4in Female Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile Rubber Seals.
Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Interchanges with all products produced to A-A-59326D.

A380 Permanent Mold Aluminum with Brass Handles Part Number	ASTMC38000 Forged Brass Part Number	316 Investment Cast Stainless Steel Part Number	A380 Permanent Mold Aluminum with Investment Stainless Handles Part Number	Size
G50-DC-AL,*	G50-DC-BR,*	G50-DC-SS*	-	1/2"
G75-DC-AL**	G75-DC-BR**	G75-DC-SS	-	3/4"
G100-DC-AL**	G100-DC-BR**	G100-DC-SS	-	1"
G125-DC-AL	G125-DC-BR	G125-DC-SS	-	1-1/4"
G150-DC-AL	G150-DC-BR	G150-DC-SS	G150-DC-ALSI	1-1/2"
G200-DC-AL	G200-DC-BR	G200-DC-SS	G200-DC-ALSI	2"
G250-DC-AL	G250-DC-BR	G250-DC-SS	-	2-1/2"
G300-DC-AL	G300-DC-BR	G300-DC-SS	G300-DC-ALSI	3"
G400-DC-AL	G400-DC-BR	G400-DC-SS	G400-DC-ALSI	4"
G500-DC-AL*	G500-DC-BR*	-	-	5"
G600-DC-AL	-	G600-DC-SS	-	6"

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.

** Supplied with stainless steel handles.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
