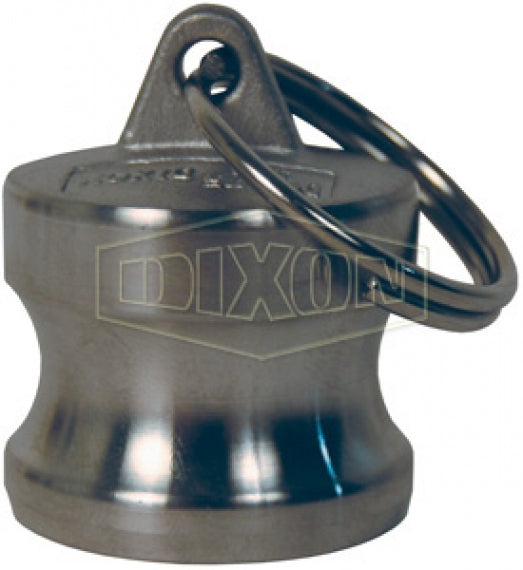

G250-DP-SS by Dixon Valve | Global Cam & Groove Dust Plug | Type DP | 2-1/2" Body Size | 316 Investment Cast Stainless Steel

Name: G250-DP-SS by Dixon Valve | Global Cam & Groove Dust Plug | Type DP | 2-1/2" Body Size | 316 Investment Cast Stainless Steel
Brand: Dixon
SKU: G250-DP-SS Dixon
Price: 37.21 USD
Availability: InStock

Save $4.65

$41.86

$41.86 - $41.86

$41.86

$37.21

$37.21 - $37.21

$37.21

Dixon Valve
Global Cam & Groove | Type DP Dust Plug

Designed for use with liquids.

Quantity

Specifications for Variant SKU: G250-DP-SS Dixon
Cam Type:	Type DP
Ends Configuration:	2-1/2in Male Cam & Groove
Material(s):	316 Stainless Steel

Construction:
Made to Dixon specifications and branded Dixon.
Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Interchanges with all products produced to A-A-59326D.

A380 Permanent Mold Aluminum Part Number	ASTMC38000 Forged Brass Part Number	316 Investment Cast Stainless Steel Part Number	Size
G50-DP-AL*	G50-DP-BR*	G50-DP-SS*	1/2"
G75-DP-AL	G75-DP-BR	G75-DP-SS	3/4"
G100-DP-AL	G100-DP-BR	G100-DP-SS	1"
G125-DP-AL	G125-DP-BR	G125-DP-SS	1-1/4"
G150-DP-AL	G150-DP-BR	G150-DP-SS	1-1/2"
G200-DP-AL	G200-DP-BR	G200-DP-SS	2"
G250-DP-AL	G250-DP-BR	G250-DP-SS	2-1/2"
G300-DP-AL	G300-DP-BR	G300-DP-SS	3"
G400-DP-AL	G400-DP-BR	G400-DP-SS	4"
G500-DP-AL*	G500-DP-BR*	-	5"
G600-DP-AL	-	G600-DP-SS	6"

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
