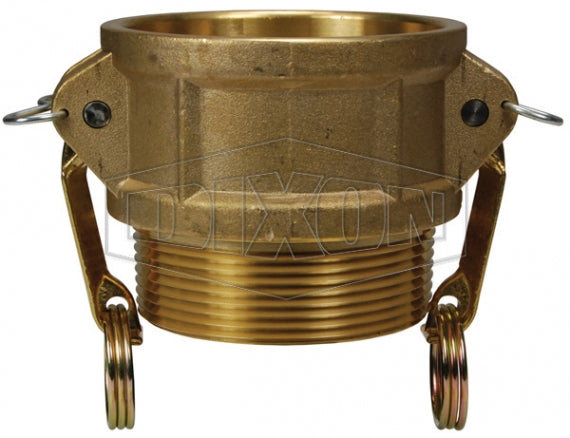

G300-B-BR by Dixon Valve | Global Cam & Groove Coupler | Type B | 3" Coupler x 3" Male NPT | ASTMC38000 Forged Brass

G300-B-BR by Dixon Valve | Global Cam & Groove Coupler | Type B | 3" Coupler x 3" Male NPT | ASTMC38000 Forged Brass

Save $7.76 Save $7.76
$69.87
$69.87 - $69.87
$69.87
$62.11
$62.11 - $62.11
$62.11

Dixon Valve
Global Cam & Groove | Type B Coupler | Coupler x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: G300-B-BR Dixon
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Male NPT, 3in Female Cam & Groove
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber Seals.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Interchanges with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
with Brass Handles
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 A380 Permanent Mold Aluminum
with Investment Stainless Handles
Part Number		 Size Max. Operating Pressure
G50-B-AL*,** G50-B-BR*,** G50-B-SS* - 1/2" 150 PSI
G75-B-AL** G75-B-BR** G75-B-SS - 3/4" 250 PSI
G100-B-AL** G100-B-BR** G100-B-SS - 1" 250 PSI
G125-B-AL G125-B-BR G125-B-SS - 1-1/4" 250 PSI
G150-B-AL G150-B-BR G150-B-SS G150-B-ALSI 1-1/2" 250 PSI
G200-B-AL G200-B-BR G200-B-SS G200-B-ALSI 2" 250 PSI
G250-B-AL G250-B-BR G250-B-SS - 2-1/2" 150 PSI
G300-B-AL G300-B-BR G300-B-SS G300-B-ALSI 3" 125 PSI
G400-B-AL G400-B-BR G400-B-SS G400-B-ALSI 4" 100 PSI
G500-B-AL* G500-B-BR* - - 5" 75 PSI
G600-B-AL - G600-B-SS - 6" 75 PSI

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.

** Supplied with stainless steel handles.
