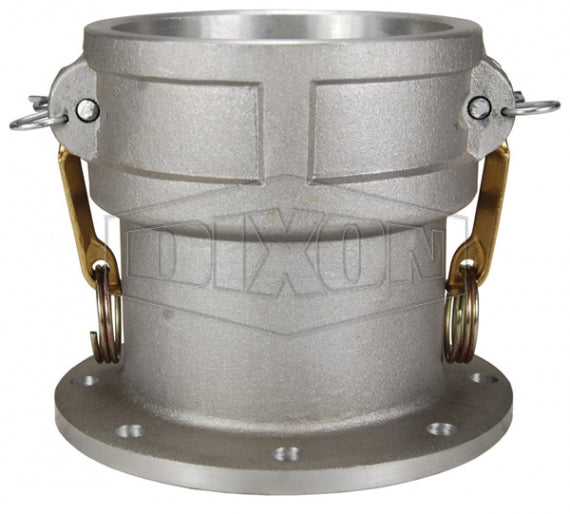

G400-DL-AL by Dixon Valve | Global Cam & Groove Coupler | 4" Coupler x ANSI Flange | Aluminum

G400-DL-AL by Dixon Valve | Global Cam & Groove Coupler | 4" Coupler x ANSI Flange | Aluminum

Save $85.63 Save $85.63
$214.08
$214.08 - $214.08
$214.08
$128.45
$128.45 - $128.45
$128.45

Dixon Valve
Global Cam & Groove | Coupler x ANSI Flange

Designed for use with liquids.
Specifications for Variant SKU: G400-DL-AL Dixon
Shape (Orientation): Straight
Material(s): Aluminum
Construction:
  • Made to Dixon specifications and branded Dixon.
  • Nitrile rubber seals are standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
356T6 Aluminum
Part Number		 Size Max. Operating Pressure
G400-DL-AL 4" 100 PSI
G600-DL-AL 6" 100 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
