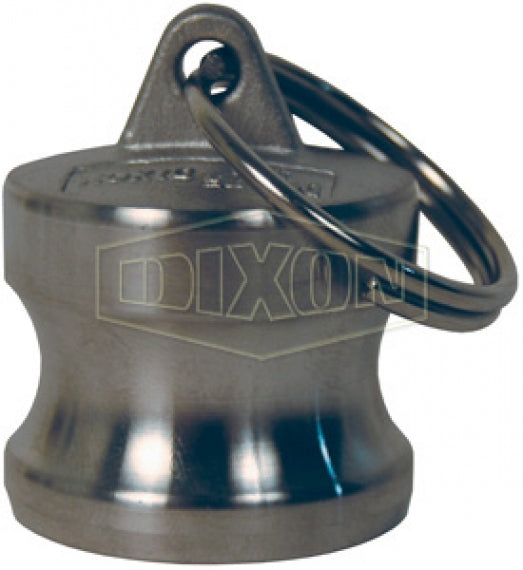

G400-DP-SS by Dixon Valve | Global Cam & Groove Dust Plug | Type DP | 4" Body Size | 316 Investment Cast Stainless Steel

G400-DP-SS by Dixon Valve | Global Cam & Groove Dust Plug | Type DP | 4" Body Size | 316 Investment Cast Stainless Steel

Save $35.82 Save $35.82
$89.55
$89.55 - $89.55
$89.55
$53.73
$53.73 - $53.73
$53.73

Dixon Valve
Global Cam & Groove | Type DP Dust Plug

Designed for use with liquids.
Specifications for Variant SKU: G400-DP-SS Dixon
Cam Type: Type DP
Ends Configuration: 4in Male Cam & Groove
Material(s): 316 Stainless Steel
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Interchanges with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Size
G50-DP-AL* G50-DP-BR* G50-DP-SS* 1/2"
G75-DP-AL G75-DP-BR G75-DP-SS 3/4"
G100-DP-AL G100-DP-BR G100-DP-SS 1"
G125-DP-AL G125-DP-BR G125-DP-SS 1-1/4"
G150-DP-AL G150-DP-BR G150-DP-SS 1-1/2"
G200-DP-AL G200-DP-BR G200-DP-SS 2"
G250-DP-AL G250-DP-BR G250-DP-SS 2-1/2"
G300-DP-AL G300-DP-BR G300-DP-SS 3"
G400-DP-AL G400-DP-BR G400-DP-SS 4"
G500-DP-AL* G500-DP-BR* - 5"
G600-DP-AL - G600-DP-SS 6"

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
