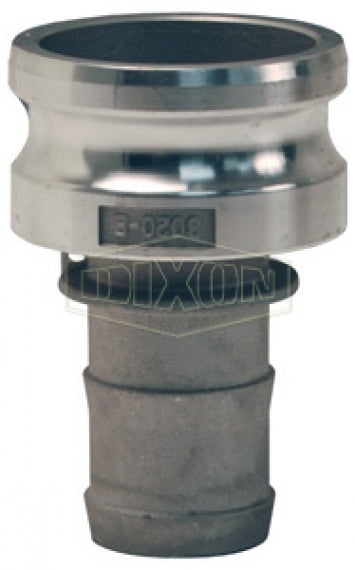

G4030-E-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Adapter | Type E | 4" Adapter x 3" Hose Shank | A380 Permanent Mold Aluminum

Name: G4030-E-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Adapter | Type E | 4" Adapter x 3" Hose Shank | A380 Permanent Mold Aluminum
Brand: Dixon
SKU: G4030-E-AL Dixon
Price: 51.53 USD
Availability: InStock

Save $34.35

$85.88

$85.88 - $85.88

$85.88

$51.53

$51.53 - $51.53

$51.53

Dixon Valve
Global Cam & Groove | Type A | Reducer (Jump Size) Adapter | Adapter x Hose Shank

Designed for use with liquids.

Specifications for Variant SKU: G4030-E-AL Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in Male Cam & Groove, 3in Hose Barb
Material(s):	Aluminum

Construction:
Made to Dixon specifications and branded Dixon.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Designed to interchange with all products produced to A-A-59326D.

A380 Permanent Mold Aluminum Part Number	Coupler x Hose shank Size	Max. Operating Pressure
G3020-E-AL	3" x 2"	125 PSI
G4030-E-AL	4" x 3"	100 PSI
