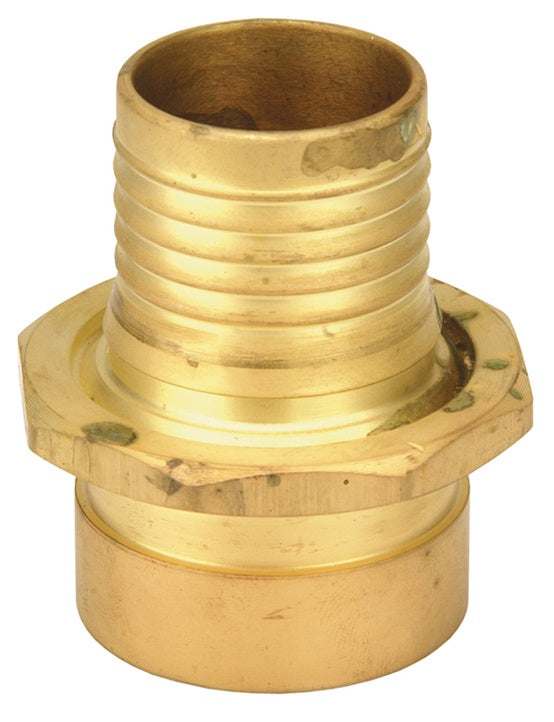

G5252 by Dixon Valve | Holedall® Petroleum Style Grooved Coupling | 2-1/2" Grooved End x 2-1/2" Hose ID | Brass

G5252 by Dixon Valve | Holedall® Petroleum Style Grooved Coupling | 2-1/2" Grooved End x 2-1/2" Hose ID | Brass

Save $64.67 Save $64.67
$161.68
$161.68 - $161.68
$161.68
$97.01
$97.01 - $97.01
$97.01

Dixon Valve
Holedall® Petroleum Style Grooved Coupling

Recommended for discharge and suction service; commonly used in the transfer of fuel to homes, airplanes, ships, etc.

Intended for fuel delivery service.
Specifications for Variant SKU: G5252 Dixon
Brand: Holedall
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Grooved End, 2-1/2in Internal Expansion Hose End
Material(s): Brass
Features:
  • Couplings are compact, light and streamlined to eliminate catching on curbs and shrubs.
  • Male has octagonal facets for tightening with a wrench.
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area.
  • Couplings are pre-lubricated for assembly.
Notes:
  • Designed for internal expansion only.
  • The working pressure of the 520-H fitting varies with the size of the fitting, the size and construction of the hose and the media being conveyed.
Safety Notes:
  • Do not interchange with other manufacturer's fittings.
  • Designed for internal expansion only.
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or the Dixon factory for material compatibility.
  • For applications other than the ones list, please consult Dixon.
Holedall® Petroleum Style Female Coupling
Brass
Part Number		 Grooved End Hose ID
G5212 1" 1"
G5232 1-1/2" 1-1/2"
G5242 2" 2"
G5252 2-1/2" 2-1/2"
