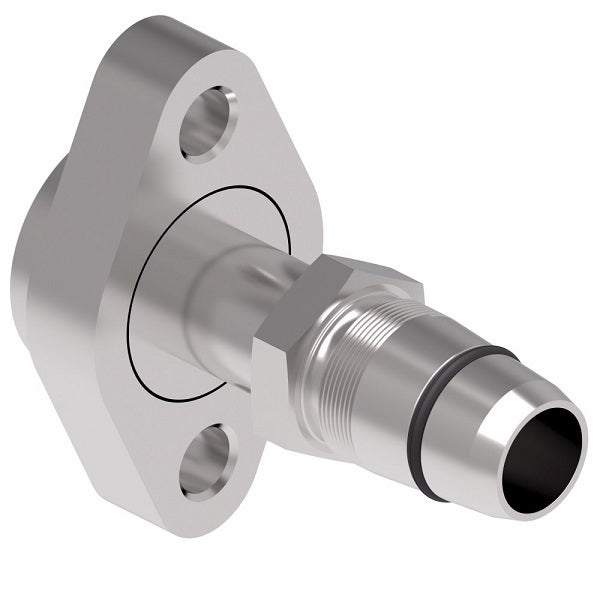

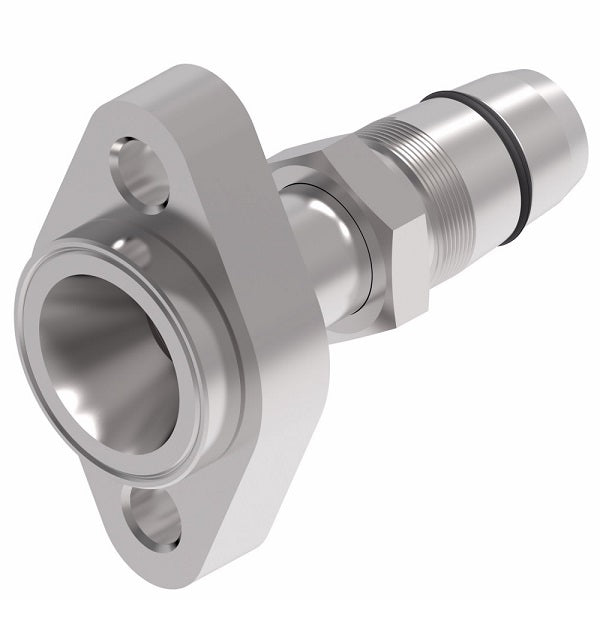

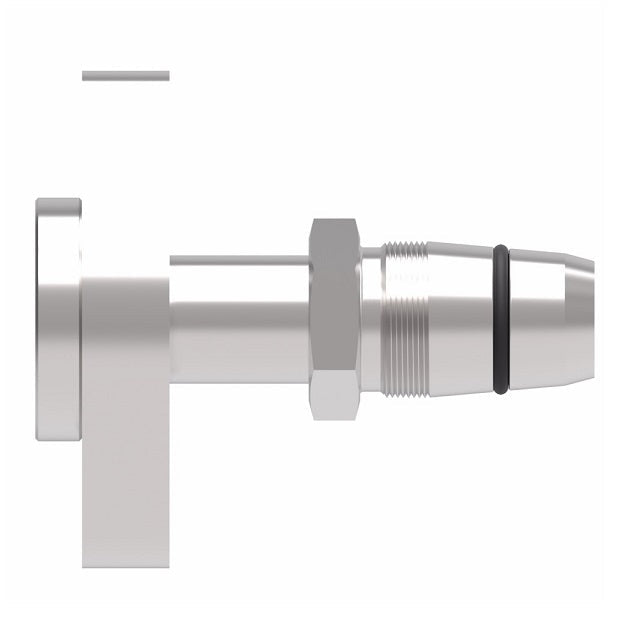

GA25126-20 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -20 Hose Size x -20 Tube Size | Steel

GA25126-20 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -20 Hose Size x -20 Tube Size | Steel

Name: GA25126-20 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -20 Hose Size x -20 Tube Size | Steel
Brand: Danfoss/Eaton
SKU: GA25126-20 Danfoss
Price: 73.45 USD
Availability: InStock

$73.45 - $73.45

$73.45

$73.45 - $73.45

$73.45

Danfoss A/C & Refrigeration
FC800 EverCool Series - BOCK Hose Nipple Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: GA25126-20 Danfoss
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	FC800 Series

Notes:
The Nipple and the Socket must be ordered separately.


Steel Part Number Hose Nipple	Steel Part Number Socket	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Hole dia.	Nipple Hex.(metric)	Socket Hex.(metric)
GA25126-16	G1212-16K	-16	-16	-	3.78"	2.62"	0.69"	24mm	36mm
GA25126-20	G1212-20K	-20	-20	-	4.00"	2.68"	0.95"	36mm	46mm
GA25126-24	G1212-24	-24	-24	-	3.78"	2.10"	1.16"	46mm	50mm
