GA25126-24 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -24 Hose Size x -24 Tube Size | Steel

GA25126-24 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -24 Hose Size x -24 Tube Size | Steel

Name: GA25126-24 by Danfoss | BOCK Hose Nipple Field Attachable Fitting | FC800 EverCool | -24 Hose Size x -24 Tube Size | Steel
Brand: Danfoss/Eaton
SKU: GA25126-24 Danfoss
Price: 82.9 USD
Availability: InStock

$82.90 - $82.90

$82.90

$82.90 - $82.90

$82.90

Danfoss A/C & Refrigeration

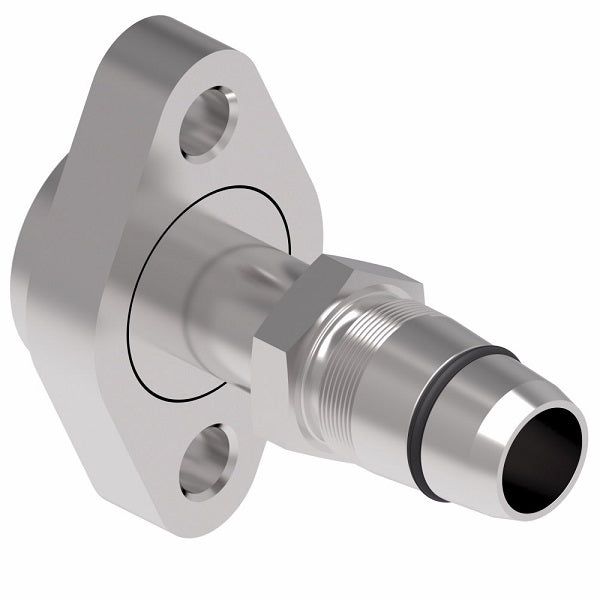

FC800 EverCool Series - BOCK Hose Nipple Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: GA25126-24 Danfoss
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	FC800 Series

Notes:
The Nipple and the Socket must be ordered separately.


Steel Part Number Hose Nipple	Steel Part Number Socket	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Hole dia.	Nipple Hex.(metric)	Socket Hex.(metric)
GA25126-16	G1212-16K	-16	-16	-	3.78"	2.62"	0.69"	24mm	36mm
GA25126-20	G1212-20K	-20	-20	-	4.00"	2.68"	0.95"	36mm	46mm
GA25126-24	G1212-24	-24	-24	-	3.78"	2.10"	1.16"	46mm	50mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
