Danfoss A/C & Refrigeration

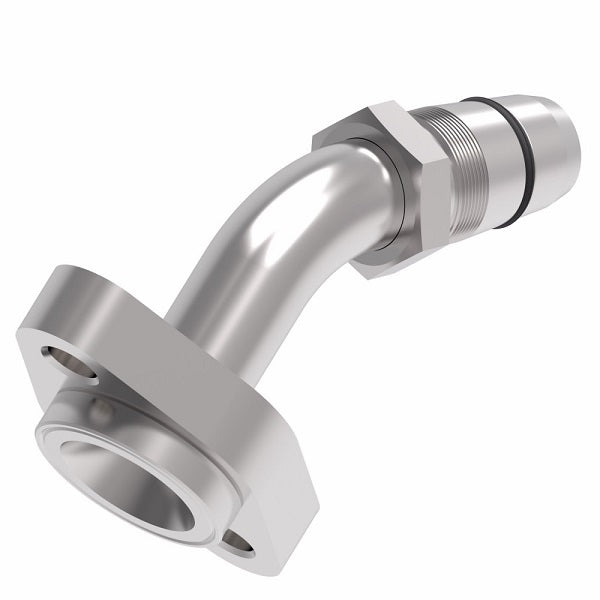

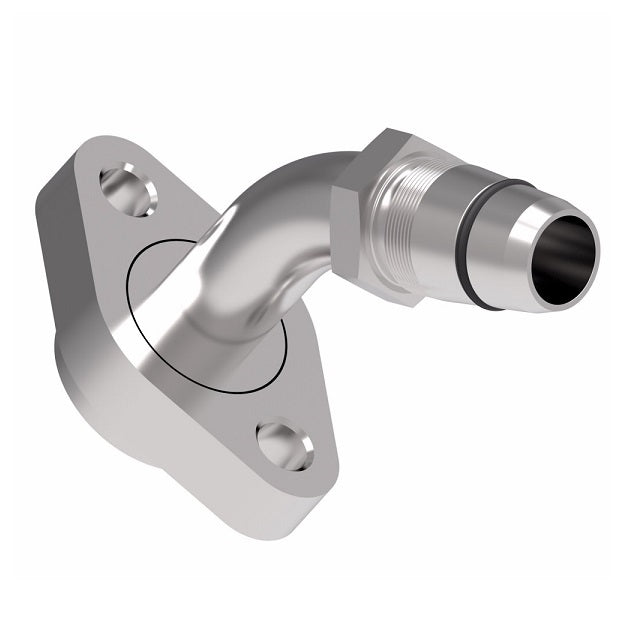

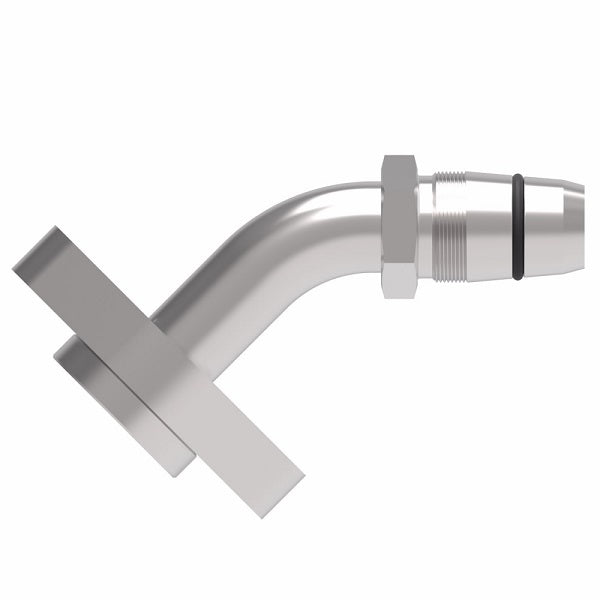

FC800 EverCool Series - BOCK Tube Field Attachable Fitting - 45° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: GA25127-20 Danfoss
Shape (Orientation): 45 Degree
Material(s): Steel
Compatible with the following Series: FC800 Series
Notes:
  • The Nipple and the Socket must be ordered separately.
Part Number
Hose Nipple 		Part Number
Socket 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Drop dia. Hole dia. Nipple Hex.(metric) Socket Hex.(metric)
GA25127-16 G1212-16K -16 -16 - 4.49" 3.33" 1.81" 0.69" 24mm 36mm
GA25127-20 G1212-20K -20 -20 - 4.83" 3.51" 1.81" 0.95" 36mm 46mm
