GA25128-16 by Danfoss | BOCK 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Hose Size x -16 Tube Size | Steel

GA25128-16 by Danfoss | BOCK 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Hose Size x -16 Tube Size | Steel

Name: GA25128-16 by Danfoss | BOCK 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Hose Size x -16 Tube Size | Steel
Brand: Danfoss/Eaton
SKU: GA25128-16 Danfoss
Price: 79.53 USD
Availability: InStock

$79.53 - $79.53

$79.53

$79.53 - $79.53

$79.53

Danfoss A/C & Refrigeration

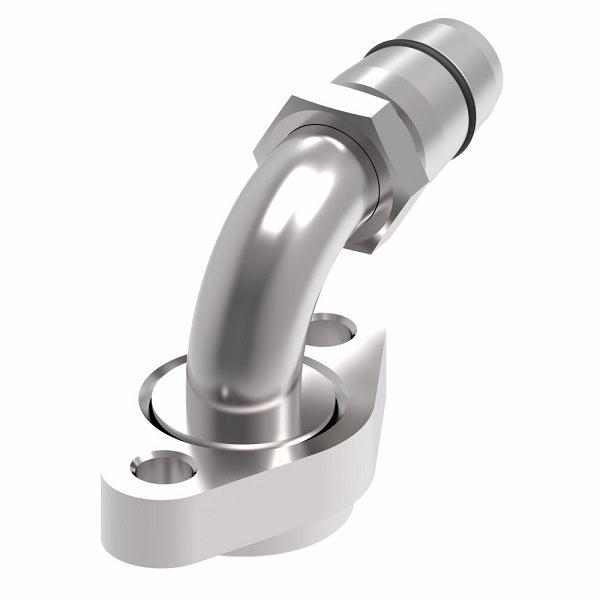

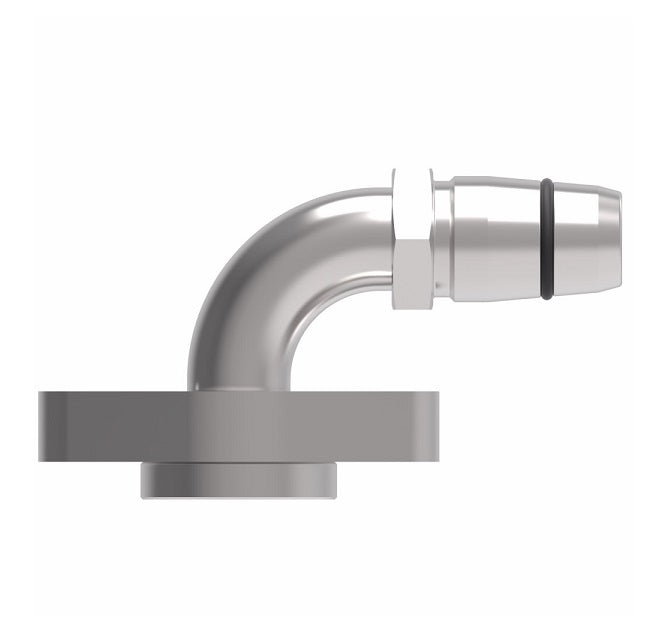

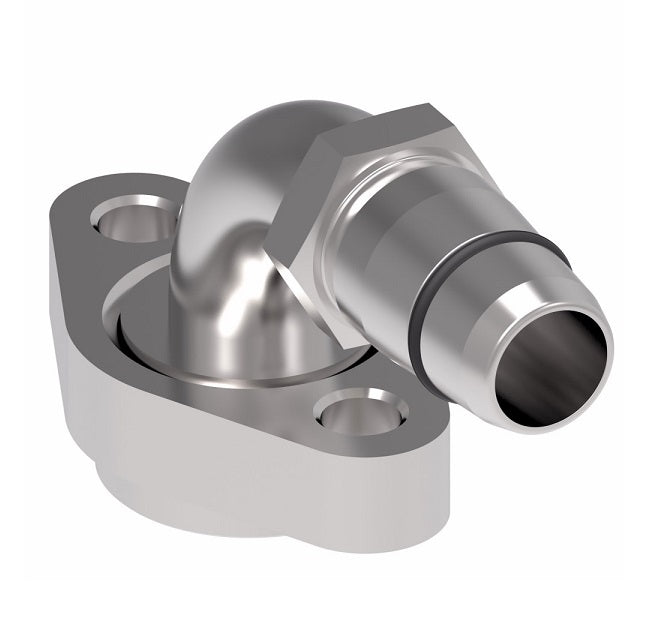

FC800 EverCool Series - BOCK Tube Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: GA25128-16 Danfoss
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	FC800 Series

Notes:
The Nipple and the Socket must be ordered separately.


Part Number Hose Nipple	Part Number Socket	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dia.	Hole dia.	Nipple Hex.(metric)	Socket Hex.(metric)
GA25128-16	G1212-16K	-16	-16	-	3.21"	2.05"	2.18"	0.69"	24mm	36mm
GA25128-20	G1212-20K	-20	-20	-	-	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
