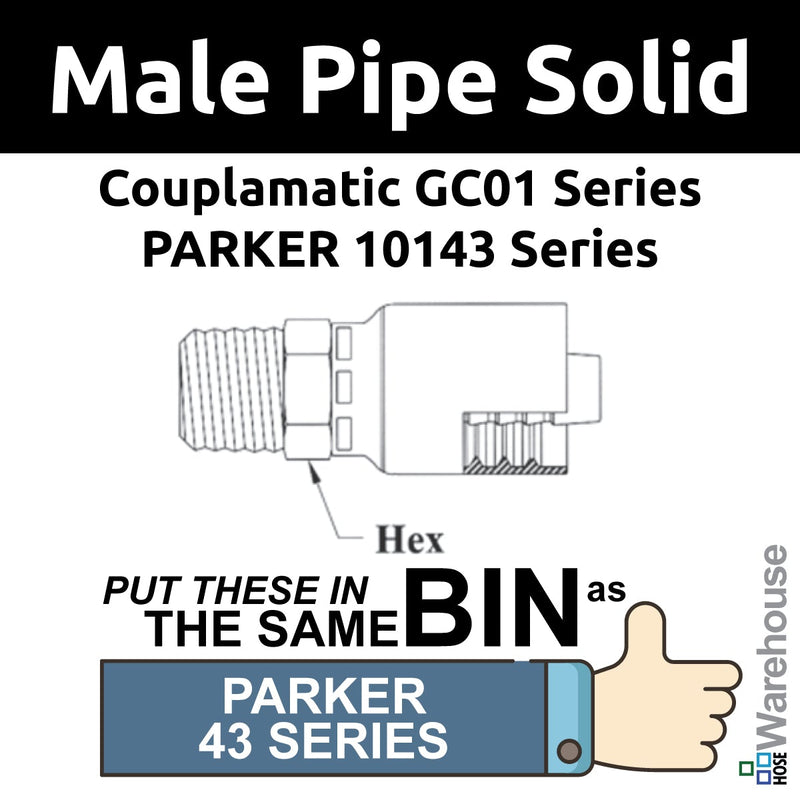

GC01-24x24 Couplamatic Grip Crimp Coupling - NPTF - Male Solid - 1-1/2" Hose ID - 1-1/2-11-1/2 Thread Size

GC01-24x24 by Couplamatic | Grip Crimp Coupling | 1-1/2" Hose ID x 1-1/2-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $24.91 Save $24.91
$62.27
$62.27 - $62.27
$62.27
$37.36
$37.36 - $37.36
$37.36

Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Male Solid
Specifications for Variant SKU: GC01-24x24 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC01-4x2 1/4" 1/8" 1/8-27 9/16" 4G-2MP 10143-2-4
GC01-4x4 1/4" 1/4" 1/4-18 9/16" 4G-4MP 10143-4-4
GC01-4x6 1/4" 3/8" 3/8-18 11/16" 4G-6MP 10143-6-4
GC01-4x8 1/4" 1/2" 1/2-14 7/8" 4G-8MP 10143-8-4
GC01-6x4 3/8" 1/4" 1/4-18 3/4" 6G-4MP 10143-4-6
GC01-6x6 3/8" 3/8" 3/8-18 3/4" 6G-6MP 10143-6-6
GC01-6x8 3/8" 1/2" 1/2-14 7/8" 6G-8MP 10143-8-6
GC01-8x4 1/2" 1/4" 1/4-18 7/8" 8G-4MP 10143-4-8
GC01-8x6 1/2" 3/8" 3/8-18 7/8" 8G-6MP 10143-6-8
GC01-8x8 1/2" 1/2" 1/2-14 7/8" 8G-8MP 10143-8-8
GC01-8x12 1/2" 3/4" 3/4-14 1-1/8" 8G-12MP 10143-12-8
GC01-10x8 5/8" 1/2" 1/2-14 15/16" 10G-8MP 10143-8-10
GC01-10x12 5/8" 3/4" 3/4-14 1-1/8" 10G-12MP 10143-12-10
GC01-12x8 3/4" 1/2" 1/2-14 1-1/8" 12G-8MP 10143-8-12
GC01-12x12 3/4" 3/4" 3/4-14 1-1/8" 12G-12MP 10143-12-12
GC01-12x16 3/4" 1" 1-11-1/2 1-3/8" 12G-16MP 10143-16-12
GC01-16x12 1" 3/4" 3/4-14 1-3/8" 16G-12MP 10143-12-16
GC01-16x16 1" 1" 1-11-1/2 1-3/8" 16G-16MP 10143-16-16
GC01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 20G-20MP 10143-20-20
GC01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" - 10143-24-24
GC01-32x32 2" 2" 2-11-1/2 2-1/2" - 10143-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
