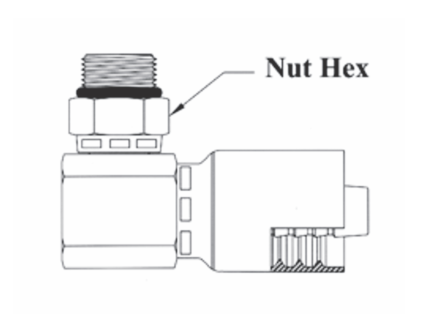

GC15-16x16 Couplamatic Grip Crimp Coupling - ORB - Male Swivel 90° - 1" Hose ID - 1-5/16x12 Thread Size

GC15-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1-5/16x12 Thread Size ORB Male Swivel | 90° Elbow | Trivalent Zinc Plating

Save $28.79 Save $28.79
$71.98
$71.98 - $71.98
$71.98
$43.19
$43.19 - $43.19
$43.19

Couplamatic Systems Inc.
Grip Crimp Series - ORB - Male Swivel 90°
Specifications for Variant SKU: GC15-16x16 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male O-Ring Boss, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC11-4x4 1/4" 7/16x20 1/4" 9/16" 4G-4MB 10543-4-4
GC11-4x5 1/4" 1/2x20 5/16" 5/8" 4G-5MB 10543-5-4
GC11-4x6 1/4" 9/16x18 3/8" 11/16" 4G-6MB 10543-6-4
GC11-6x6 3/8" 9/16x18 3/8" 11/16" 6G-6MB 10543-6-6
GC11-6x8 3/8" 3/4x16 1/2" 7/8" 6G-8MB 10543-8-6
GC11-6x10 3/8" 7/8x14 5/8" 1" 6G-10MB 10543-10-6
GC11-8x8 1/2" 3/4x16 1/2" 7/8" 8G-8MB 10543-8-8
GC11-8x10 1/2" 7/8x14 5/8" 1" 8G-10MB 10543-10-8
GC11-8x12 1/2" 1-1/16x12 3/4" 1-1/4" 8G-12MB 10543-12-8
GC11-10x8 5/8" 3/4x16 1/2" 15/16" 10G-8MB 10543-8-10
GC11-10x10 5/8" 7/8x14 5/8" 1" 10G-10MB 10543-10-10
GC11-10x12 5/8" 1-1/16x12 3/4" 1-1/4" - 10543-12-10
GC11-12x10 3/4" 7/8x14 5/8" 1-1/8" 12G-10MB 10543-10-12
GC11-12x12 3/4" 1-1/16x12 3/4" 1-1/4" 12G-12MB 10543-12-12
GC11-16x16 1" 1-5/16x12 1" 1-1/2" 16G-16MB 10543-16-16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
