GC20-6x6 Couplamatic Grip Crimp Coupling - Male Inverted Flare - 90° - 3/8" Hose ID - 5/8x18 Thread Size

GC20-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 5/8x18 Thread Size Male Inverted Flare | 90° Elbow | Trivalent Zinc Plating

Save $0.85 Save $0.85
$8.49
$8.49 - $8.49
$8.49
$7.64
$7.64 - $7.64
$7.64

Couplamatic Systems Inc.
Grip Crimp Series - Male Inverted Flare - 90°
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GC20-6x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male Inverted Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

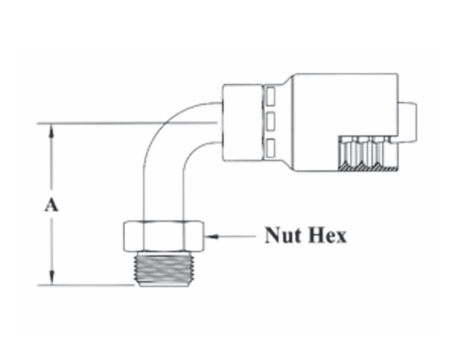

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC20-4x3 1/4" 3/8x24 3/16" 1.06" 3/8" - 16943-3-4
GC20-4x4 1/4" 7/16x24 1/4" 1.23" 7/16" 4G-4MIX90 16943-4-4
GC20-4x5 1/4" 1/2x20 5/16" 1.38" 1/2" 4G-5MIX90 16943-5-4
GC20-6x4 3/8" 7/16x24 1/4" 1.36" 7/16" 6G-4MIX90 16943-4-6
GC20-6x5 3/8" 1/2x20 5/16" 1.38" 1/2" 6G-5MIX90 16943-5-6
GC20-6x6 3/8" 5/8x18 3/8" 1.63" 5/8" 6G-6MIX90 16943-6-6
GC20-6x7 3/8" 11/16x18 7/16" 1.97" 11/16" 6G-7MIX90 16943-7-6
GC20-8x8 1/2" 3/4x18 1/2" 2.20" 3/4" 8G-8MIX90 16943-8-8

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
