GC25-4x4 Couplamatic Grip Crimp Coupling - JIC/SAE Dual Seat - 45° Female Swivel - 1/4" Hose ID - 7/16x20 Thread Size

GC25-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 7/16x20 Thread Size JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Pack of 5

Save $26.80

$67.00

$67.00 - $67.00

$67.00

$40.20

$40.20 - $40.20

$40.20

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 45° Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: GC25-4x4 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb, 1/4in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Grip Crimp — Bite to the Wire

GC25 Grip Crimp Coupling — JIC/SAE Dual Seat, Female Swivel, 45° Elbow

GC25 is the JIC/SAE Dual Seat, Female Swivel, 45° Elbow configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?

Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
Trivalent Zinc Plating
Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.

2

Which sizes are available?

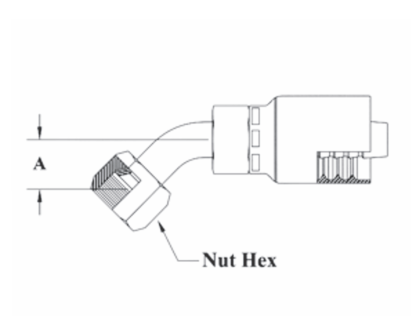

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Gates Mega	Parker 43
GC25-4x4	1/4"	7/16x20	1/4"	0.47"	9/16"	4G-4FJX45	13743-4-4
GC25-4x5	1/4"	1/2x20	5/16"	0.53"	5/8"	4G-5FJX45	13743-5-4
GC25-4x6*	1/4"	9/16x18	3/8"	0.59"	11/16"	—	13743-6-4
GC25-6x4	3/8"	7/16X20	1/4"	0.47"	9/16"	—	—
GC25-6x5	3/8"	1/2x20	5/16"	0.53"	5/8"	—	13743-5-6
GC25-6x6*	3/8"	9/16x18	3/8"	0.59"	11/16"	6G-6FJX45	13743-6-6
GC25-6x8	3/8"	3/4x16	1/2"	0.71"	7/8"	6G-8FJX45	13743-8-6
GC25-8x8	1/2"	3/4x16	1/2"	0.71"	7/8"	8G-8FJX45	13743-8-8
GC25-8x10	1/2"	7/8x14	5/8"	0.84"	1"	8G-10FJX45	13743-10-8
GC25-10x10	5/8"	7/8x14	5/8"	0.68"	1"	10G-10FJX45	13743-10-10
GC25-10x12*	5/8"	1-1/16x12	3/4"	0.78"	1-1/4"	10G-12FJX45	13743-12-10
GC25-12x12*	3/4"	1-1/16x12	3/4"	1.12"	1-1/4"	12G-12FJX45	13743-12-12
GC25-12x16*	3/4"	1-5/16x12	1"	1.15"	1-1/2"	—	13743-16-12
GC25-16x16*	1"	1-5/16x12	1"	1.15"	1-1/2"	16G-16FJX45	13743-16-16
GC25-20x20	1-1/4"	1-5/8x12	1-1/4"	1.69"	2"	—	13743-20-20

i

JIC Seat and thread only The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
