GC25-4x5 Couplamatic Grip Crimp Coupling - JIC/SAE Dual Seat - 45° Female Swivel - 1/4" Hose ID - 1/2x20 Thread Size

GC25-4x5 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/2x20 Thread Size JIC/SAE Dual Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

Save $5.91 Save $5.91
$14.77
$14.77 - $14.77
$14.77
$8.86
$8.86 - $8.86
$8.86

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 45° Female Swivel
Specifications for Variant SKU: GC25-4x5 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 45 Degree
Ends Configuration: 5/16in Female JIC, 1/4in Hose Barb, 5/16in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

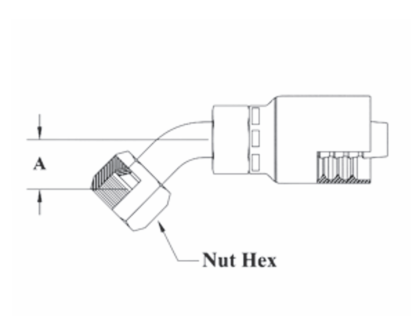

Part Number Hose ID Thread Size Tube OD A Drop Inches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC25-4x4 1/4" 7/16x20 1/4" 0.47" 9/16" 4G-4FJX45 13743-4-4
GC25-4x5 1/4" 1/2x20 5/16" 0.53" 5/8" 4G-5FJX45 13743-5-4
GC25-4x6* 1/4" 9/16x18 3/8" 0.59" 11/16" - 13743-6-4
GC25-6x4 3/8" 7/16X20 1/4" 0.47" 9/16" - -
GC25-6x5 3/8" 1/2x20 5/16" 0.53" 5/8" - 13743-5-6
GC25-6x6* 3/8" 9/16x18 3/8" 0.59" 11/16" 6G-6FJX45 13743-6-6
GC25-6x8 3/8" 3/4x16 1/2" 0.71" 7/8" 6G-8FJX45 13743-8-6
GC25-8x8 1/2" 3/4x16 1/2" 0.71" 7/8" 8G-8FJX45 13743-8-8
GC25-8x10 1/2" 7/8x14 5/8" 0.84" 1" 8G-10FJX45 13743-10-8
GC25-10x10 5/8" 7/8x14 5/8" 0.68" 1" 10G-10FJX45 13743-10-10
GC25-10x12* 5/8" 1-1/16x12 3/4" 0.78" 1-1/4" 10G-12FJX45 13743-12-10
GC25-12x12* 3/4" 1-1/16x12 3/4" 1.12" 1-1/4" 12G-12FJX45 13743-12-12
GC25-12x16* 3/4" 1-5/16x12 1" 1.15" 1-1/2" - 13743-16-12
GC25-16x16* 1" 1-5/16x12 1" 1.15" 1-1/2" 16G-16FJX45 13743-16-16
GC25-20x20 1-1/4" 1-5/8x12 1-1/4" 1.69" 2" - 13743-20-20

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
