GC34-6x6 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop - 3/8" Hose ID - 11/16x16 Thread

GC34-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 11/16x16 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

Save $1.66 Save $1.66
$14.97
$14.97 - $14.97
$14.97
$13.31
$13.31 - $13.31
$13.31

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop
Specifications for Variant SKU: GC34-6x6 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

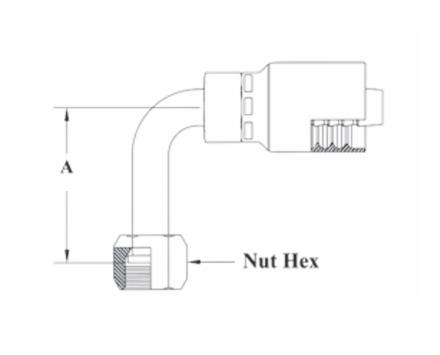

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex
GC34-4x4 1/4" 9/16x18 1/4" 1.26" 11/16"
GC34-6x6 3/8" 11/16x16 3/8" 1.51" 13/16"
GC34-8x8 1/2" 13/16x16 1/2" 1.62" 15/16"
