GC34-8x8 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop - 1/2" Hose ID - 13/16x16 Thread

GC34-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

Save $10.27 Save $10.27
$25.67
$25.67 - $25.67
$25.67
$15.40
$15.40 - $15.40
$15.40

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop
Specifications for Variant SKU: GC34-8x8 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
A Series — Bite to the Wire

GC34 A Series — O-Ring Face Seal (ORF), Female Swivel, Medium Drop 90° Elbow

GC34 is the O-Ring Face Seal (ORF), Female Swivel, Medium Drop 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?

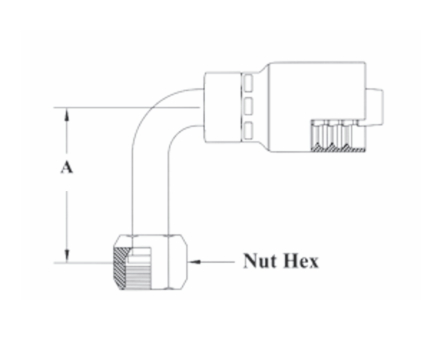

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex
GC34-4x4 1/4" 9/16x18 1/4" 1.26" 11/16"
GC34-6x6 3/8" 11/16x16 3/8" 1.51" 13/16"
GC34-8x8 1/2" 13/16x16 1/2" 1.62" 15/16"
