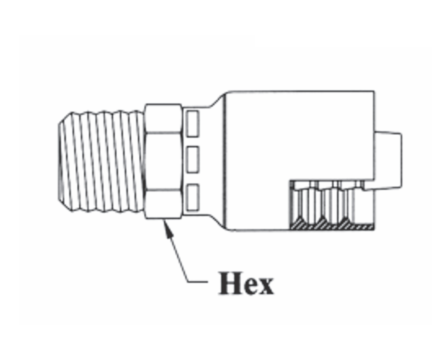

GC35-12x12 Couplamatic Grip Crimp Coupling - BSPT - British Standard Tapered - Male Pipe Solid - 3/4" Hose ID - R-3/4-14 Thread Size - 3/4" BSPT

GC35-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x R-3/4-14 Thread Size Male Pipe Solid | 3/4" BSPT | Straight | Trivalent Zinc Plating

Save $8.95 Save $8.95
$22.38
$22.38 - $22.38
$22.38
$13.43
$13.43 - $13.43
$13.43

Couplamatic Systems Inc.
Grip Crimp Series - BSPT - British Standard Tapered - Male Pipe Solid
Specifications for Variant SKU: GC35-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male BSPT, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • R. as part of thread size is ISO designation for tapered thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID BSPT Size Thread Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC35-4x4 1/4" 1/4" R-1/4-19 5/8" 4G-4MBSPT 1UT43-4-4
GC35-6x6 3/8" 3/8" R-3/8-19" 3/4" 6G-6MBSPT 1UT43-6-6
GC53-8x8 1/2" 1/2" R-1/2-14" 7/8" 8G-8MBSPT 1UT43-8-8
GC35-12x12 3/4" 3/4" R-3/4-14 1-1/8" 12G-12MBSPT 1UT43-12-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
