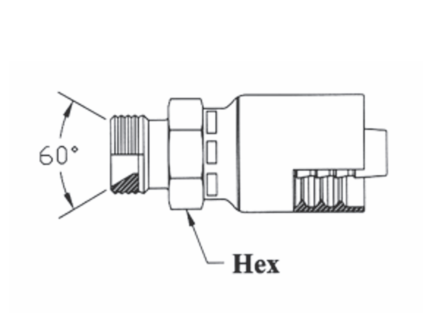

GC36-4x4 Couplamatic Grip Crimp Coupling - BSPP - British Standard Parallel 60° Seat - Male Pipe Solid - 1/4" Hose ID - G-1/4-19 Thread Size - 1/4" BSPP

GC36-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x G-1/4-19 Thread Size Male Pipe Solid | 1/4" BSPP | Straight | Trivalent Zinc Plating

Save $4.81 Save $4.81
$12.02
$12.02 - $12.02
$12.02
$7.21
$7.21 - $7.21
$7.21

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel - 60° Seat - Male Pipe Solid
Specifications for Variant SKU: GC36-4x4 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male BSPP, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID BSPP Size Thread Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC36-4x4 1/4" 1/4" G-1/4-19 11/16" 4G-4MBSPP 1D943-4-4
GC36-6x6 3/8" 3/8" G-3/8-19 3/4" 6G-6MBSPP 1D943-6-6
GC36-6x8 3/8" 1/2" G-1/2-14 1" - -
GC53-8x6 1/2" 3/8" G-3/8-19 7/8" - -
GC36-8x8 1/2" 1/2" G-1/2-14" 1" 8G-8MBSPP 1D943-8-8
GC36-12x12 3/4" 3/4" G-3/4-14 1-1/8" 12G-12MBSPP 1D943-12-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
