GC37-6x12 Couplamatic Grip Crimp Coupling - DIN Light Universal Seat - Female Swivel - 3/8" Hose ID - M18x1.5 Thread Size

GC37-6x12 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x M18x1.5 Thread Size DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $6.33 Save $6.33
$15.82
$15.82 - $15.82
$15.82
$9.49
$9.49 - $9.49
$9.49

Couplamatic Systems Inc.
Grip Crimp Series - DIN Light Universal Seat - Female Swivel
Specifications for Variant SKU: GC37-6x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: L12 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

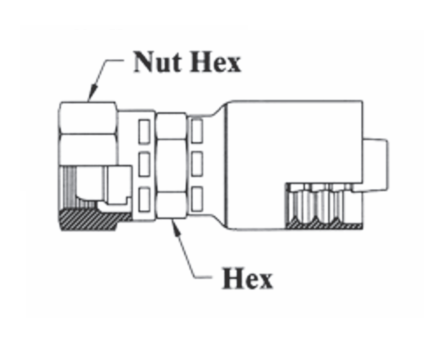

Part Number Hose ID Tube OD Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC37-4x6* 1/4" 6mm M12x1.5 5/8" 11/16" 4G-6FDLORX 1C343-6-4
GC37-4x8* 1/4" 8mm M14x1.5 5/8" 11/16" 4G-8FDLORX 1C343-8-4
GC37-4x10* 1/4" 10mm M16x1.5 5/8" 3/4" 4G-10FDLORX -
GC37-6x10* 3/8" 10mm M16x1.5 11/16" 3/4" 6G-10FDLORX 1C343-10-6
GC37-6x12* 3/8" 12mm M18x1.5 11/16" 7/8" 6G-12FDLORX 1C343-12-6
GC37-8x15 1/2" 15mm M22x1.5 7/8" 1-1/16" 8G-15FDLORX 1C343-15-8
GC37-10x18 5/8" 18mm M26x1.5 15/16" 1-1/4" 10G-18FDLORX 1C343-18-10
GC37-12x22* 3/4" 22mm M30x2.0 1-1/8" 1-1/2" 12G-22FDLORX 1C343-22-12
GC37-16x28 1" 28mm M36x2.0 1-3/8" 1-7/8" 16G-28FDLORX 1C343-28-16

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
