GC38-4x8 Couplamatic Grip Crimp Coupling - DIN Heavy 24° Seat - Female Swivel - 1/4" Hose ID - M16x1.5 Thread Size

GC38-4x8 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x M16x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $5.58 Save $5.58
$13.95
$13.95 - $13.95
$13.95
$8.37
$8.37 - $8.37
$8.37

Couplamatic Systems Inc.
Grip Crimp Series - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: GC38-4x8 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: S08 Female DIN, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

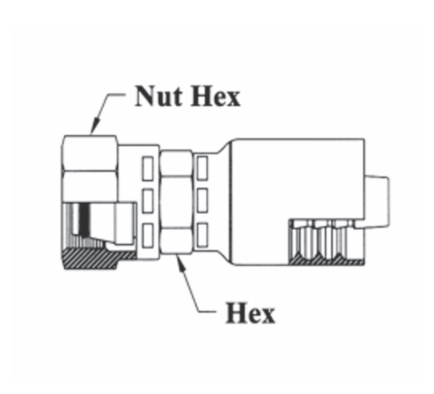

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC38-4x8 1/4" 8mm M16x1.5 5/8" 3/4" 4G-8FDHORX 1C943-8-4
GC38-4x10 1/4" 10mm M18x1.5 5/8" 7/8" 4G-10FDHORX 1C943-10-4
GC38-6x10 3/8" 10mm M18x1.5 3/4" 7/8" - 1C943-10-6
GC38-6x12 3/8" 12mm M20x1.5 3/4" 1" 6G-12FDHORX 1C943-12-6
GC38-6x14 3/8" 14mm M22x1.5 3/4" 1-1/16" 6G-14FDHORX 1C943-14-6
GC38-8x16 1/2" 16mm M24x1.5 7/8" 1-1/8" 8G-16FDHORX 1C943-16-8
GC38-10x20 5/8" 20mm M30x2.0 1-1/8" 1-1/2" 10G-20FDHORX 1C943-20-10
GC38-12x20 3/4" 20mm M30x2.0 1-1/8" 1-1/2" - 1C943-20-12
GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8" 12G-25FDHORX 1C943-25-12
GC38-16x30 1" 30mm M42x2.0 1-11/16" 2" 16G-30FDHORX 1C943-30-16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
