GC42-8x16 Couplamatic Grip Crimp Coupling - DIN Heavy 24° Seat - Female Swivel 45° Bend - 1/2" Hose ID - M24x1.5 Thread Size

GC42-8x16 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x M24x1.5 Thread Size DIN Heavy 24° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

Save $15.09 Save $15.09
$37.72
$37.72 - $37.72
$37.72
$22.63
$22.63 - $22.63
$22.63

Couplamatic Systems Inc.
Grip Crimp Series - DIN Heavy 24° Seat - Female Swivel 45° Bend
Specifications for Variant SKU: GC42-8x16 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 45 Degree
Ends Configuration: S16 Female DIN, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

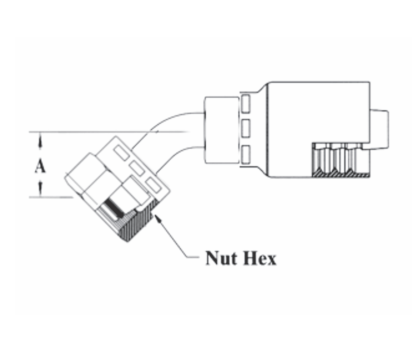

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex
GC42-4x10 1/4" 10mm M18x1.5 0.96" 7/8"
GC42-6x12 3/8" 12mm M20x1.5 1.13" 1"
GC42-8x16 1/2" 16mm M24x1.5 1.25" 1-1/8"
GC42-10x20 5/8" 20mm M30x2.0 1.50" 1-1/2"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
