GC47-8x12 Couplamatic Grip Crimp Coupling - Code 61 Split Flange - Straight - 1/2" Hose ID - 3/4" Flange Size

GC47-8x12 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4" Split Flange Size | Code 61 | Straight | Trivalent Zinc Plating

Save $13.09

$32.72

$32.72 - $32.72

$32.72

$19.63

$19.63 - $19.63

$19.63

Couplamatic Systems Inc.
Grip Crimp Series - Code 61 Split Flange - Straight

Specifications for Variant SKU: GC47-8x12 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Code 61 Flange, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

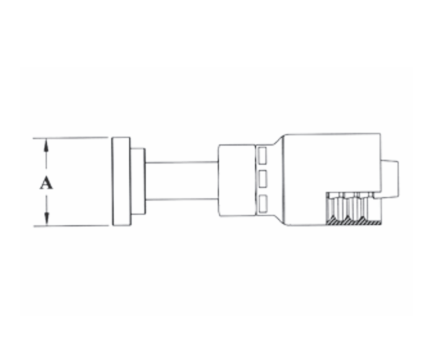

Part Number	Hose ID	Flange Size	A-DiaInches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-DiaInches	Gates Mega	Parker 43
GC47-8x8	1/2"	1/2"	1.19"	8G-8FL	11543-8-8
GC47-8x12	1/2"	3/4"	1.50"	8G-12FL	11543-12-8
GC47-12x12	3/4"	3/4"	1.50"	12G-12FL	11543-12-12
GC47-12x16	3/4"	1"	1.75"	12G-16FL	11543-16-12
GC47-16x16	1"	1"	1.75"	16G-16FL	11543-16-16
GC47-16x20	1"	1-1/4"	2.00"	16G-20FL	11543-20-16
GC47-20x20	1-1/4"	1-1/4"	2.00"	-	11543-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
