Hansen® by Danfoss

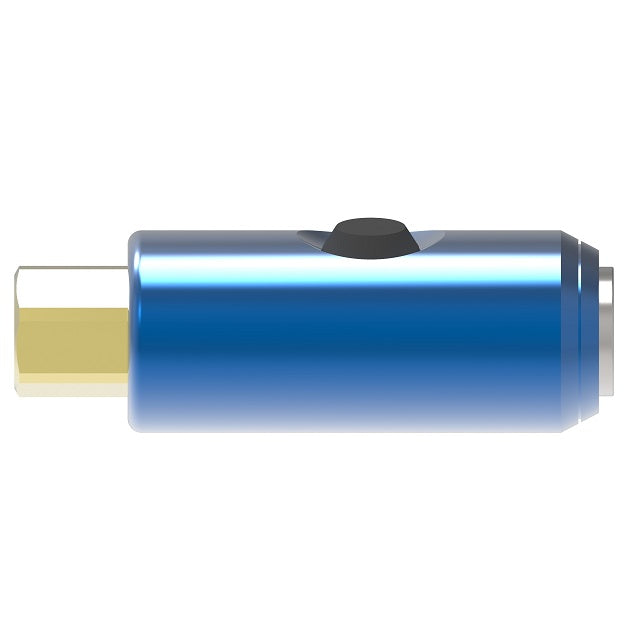

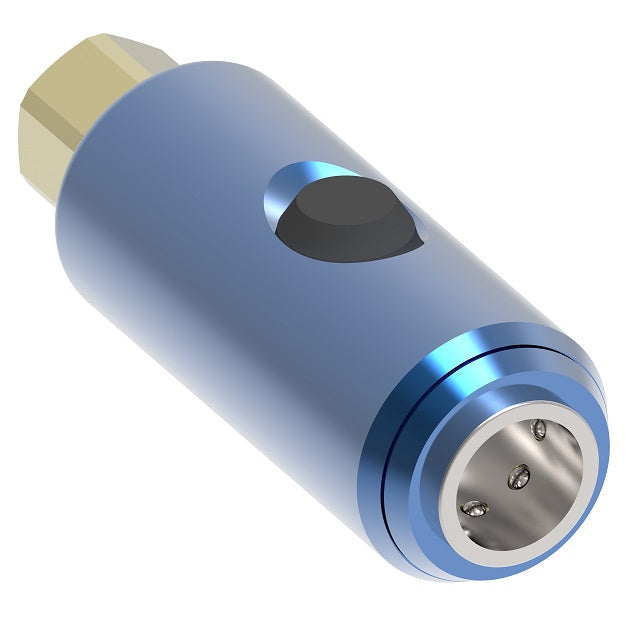

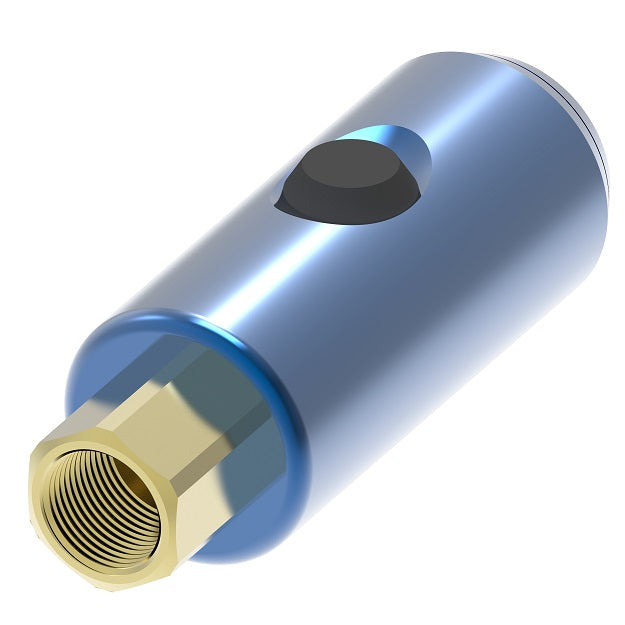

Pneumatic Quick Disconnect Coupling | Safeline Series | Safety-Type Quick-Release | ISO 6150 B GD10500

Quick Disconnect for Pneumatic Applications.

Danfoss' Safeline Series is an Industrial Interchange pneumatic coupling with push button safety feature designed for use with compressed air.

Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.

Quantity

Specifications for Variant SKU: GD1052641 Danfoss
Brand:	Hansen
Series:	Safeline Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPT, 1/4in ISO-6150 Series B Industrial Pneumatic QD Interchange
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Safe and easy to connect and disconnect. Light weight, compact ergonomic design. Accepts 1/4" ISO 6150 Series B and A-A-59439 plugs/males. Accepts all US industrial plugs/males.
Applications & Markets:	General Pneumatics Air Tools Industrial Plants Maintenance and Repair
Materials:	Standard body material: Aluminum Standard seal material: Nitrile (NBR)
Specifications:	ISO 6150 B GD10500

Body Size	Nominal Flow Diameter	Max. Operating Pressure Connected or Disconnected		Air Flow Rate*				Working Temperature
Body Size	Nominal Flow Diameter	Max. Operating Pressure Connected or Disconnected		Δp 0.6 bar/8.7 psi**		Δp 1 bar/14.5 psi***		Working Temperature
1/4"	5.5mm	16 bar	232 psi	525 lpm	139 gpm	660 lpm	174 gpm	-20° +100° °C	-4° +212° °F

*Indicated values refer to an inlet pressure of 6 bar / 87 psi.
**This flow rate allows the optimum output from a pneumatic tool.
*** This flow rate is the maximum recommended for a suitable output from a pneumatic tool. For applications needing higher flow rates, it is recommended to select a larger size coupling.


Socket/Female with Male Threads (Figure 1)				Socket/Female with Female Threads (Figure 2)
Safeline Series \| Sockets \| ISO 6150 B GD10500
Part Number	Coupling Type	Port Size	Thread	Figure	Dimensions
Part Number	Coupling Type	Port Size	Thread	Figure	A	B	C	Hex 1
GD1053641	Socket/Female	1/4"	1/4" Male NPT	1	2.65" (67.2mm)	1.02" (26.0mm)	0.59" (15.1mm)	0.67" (17mm)
GD1053683	Socket/Female	3/8"	3/8" Male NPT	1	2.62" (66.5mm)	1.02" (26.0mm)	0.60" (15.3mm)	0.75" (19mm)
GD1052641	Socket/Female	1/4"	1/4" Female NPT	2	2.33" (76.3mm)	1.02" (26.0mm)	-	0.67" (17mm)
GD1052683	Socket/Female	3/8"	3/8" Female NPT	2	3.08" (78.3mm)	1.02" (26.0mm)	-	0.87" (22mm)


Plug/Male with Male Threads (Figure 1)				Plug/Male with Female Threads (Figure 2)
Safeline Series \| Plugs \| ISO 6150 B GD10500
Part Number	Coupling Type	Port Size	Thread	Figure	Dimensions
Part Number	Coupling Type	Port Size	Thread	Figure	D	E	F	Hex 1	Hex 2
10	Plug/Male	1/4"	1/4-18 Male NPT	4	1.220" (31mm)	0.551" (14mm)	-	0.591" (15mm)	-
11	Plug/Male	1/4"	1/4-18 Female NPT	5	1.634" (41.5mm)	-	-	0.709" (18mm)	-

To obtain connected length of coupling add Dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in).
