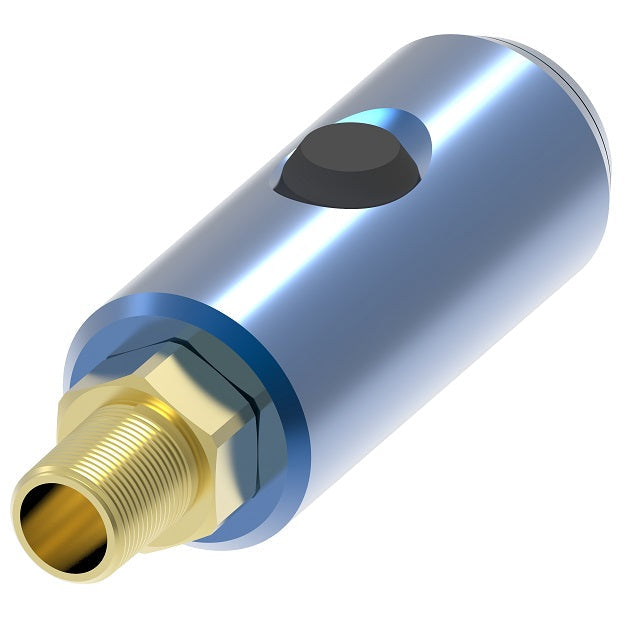

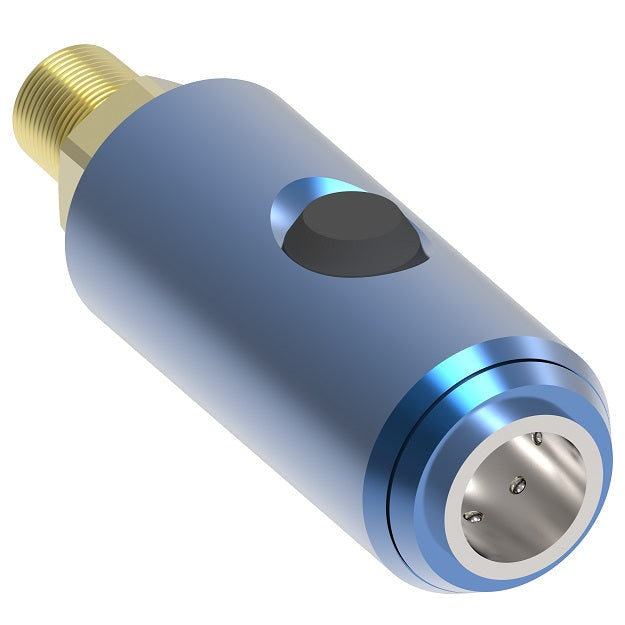

GD1053683 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Safeline Series | 3/8" Male NPT x 3/8" ISO 6150 B GD10500 | Push Button Socket | NBR Seal | Aluminum

GD1053683 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Safeline Series | 3/8" Male NPT x 3/8" ISO 6150 B GD10500 | Push Button Socket | NBR Seal | Aluminum

$124.90 - $124.90
$124.90
$124.90 - $124.90
$124.90

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Safeline Series | Safety-Type Quick-Release | ISO 6150 B GD10500

Quick Disconnect for Pneumatic Applications.

Danfoss' Safeline Series is an Industrial Interchange pneumatic coupling with push button safety feature designed for use with compressed air.

Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GD1053683 Danfoss
Brand: Hansen
Series: Safeline Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 3/8in ISO-6150 Series B Industrial Pneumatic QD Interchange
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Safe and easy to connect and disconnect.
  • Light weight, compact ergonomic design.
  • Accepts 1/4" ISO 6150 Series B and A-A-59439 plugs/males.
  • Accepts all US industrial plugs/males.
Applications & Markets:
  • General Pneumatics
  • Air Tools
  • Industrial Plants
  • Maintenance and Repair
Materials:
  • Standard body material: Aluminum
  • Standard seal material: Nitrile (NBR)
Specifications:
  • ISO 6150 B GD10500
Body Size Nominal Flow Diameter Max. Operating Pressure
Connected or Disconnected		 Air Flow Rate* Working Temperature
Δp 0.6 bar/8.7 psi** Δp 1 bar/14.5 psi***
1/4" 5.5mm 16 bar 232 psi 525 lpm 139 gpm 660 lpm 174 gpm -20° +100° °C -4° +212° °F

*Indicated values refer to an inlet pressure of 6 bar / 87 psi.
**This flow rate allows the optimum output from a pneumatic tool.
*** This flow rate is the maximum recommended for a suitable output from a pneumatic tool. For applications needing higher flow rates, it is recommended to select a larger size coupling.
Socket/Female with
Male Threads (Figure 1)
Socket/Female with
Female Threads (Figure 2)
Safeline Series | Sockets | ISO 6150 B GD10500
Part Number Coupling Type Port Size Thread Figure Dimensions
A B C Hex 1
GD1053641 Socket/Female 1/4" 1/4" Male NPT 1 2.65"
(67.2mm)		 1.02"
(26.0mm)		 0.59"
(15.1mm)		 0.67"
(17mm)
GD1053683 Socket/Female 3/8" 3/8" Male NPT 1 2.62"
(66.5mm)		 1.02"
(26.0mm)		 0.60"
(15.3mm)		 0.75"
(19mm)
GD1052641 Socket/Female 1/4" 1/4" Female NPT 2 2.33"
(76.3mm)		 1.02"
(26.0mm)		 - 0.67"
(17mm)
GD1052683 Socket/Female 3/8" 3/8" Female NPT 2 3.08"
(78.3mm)		 1.02"
(26.0mm)		 - 0.87"
(22mm)
Plug/Male with
Male Threads (Figure 1)
Plug/Male with
Female Threads (Figure 2)
Safeline Series | Plugs | ISO 6150 B GD10500
Part Number Coupling Type Port Size Thread Figure Dimensions
D E F Hex 1 Hex 2
10 Plug/Male 1/4" 1/4-18 Male NPT 4 1.220"
(31mm)		 0.551"
(14mm)		 - 0.591"
(15mm)		 -
11 Plug/Male 1/4" 1/4-18 Female NPT 5 1.634"
(41.5mm)		 - - 0.709"
(18mm)		 -

To obtain connected length of coupling add Dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in).
