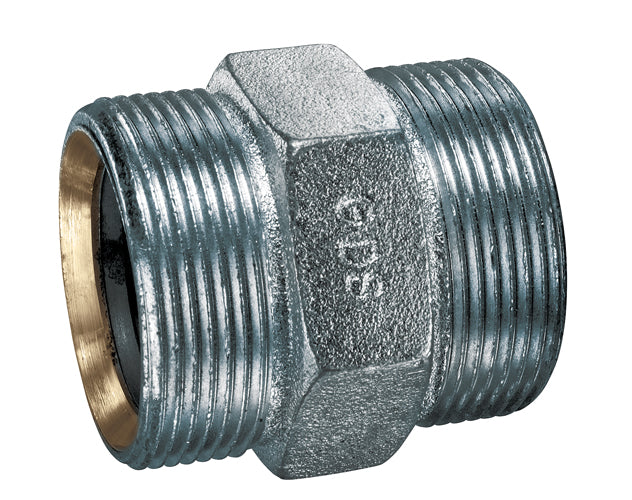

GDS-125 Alfagomma by Kuriyama | GDS Series | Ground Joint Double Spud with Copper Seal | 1-1/4" Male NPS x 1-1/4" Male NPS | Plated Ductile Iron

GDS-125 Alfagomma by Kuriyama | GDS Series | Ground Joint Double Spud with Copper Seal | 1-1/4" Male NPS x 1-1/4" Male NPS | Plated Ductile Iron

Save $9.95 Save $9.95
$28.42
$28.42 - $28.42
$28.42
$18.47
$18.47 - $18.47
$18.47

Alfagomma® by Kuriyama
GDS Series | Ground Joint Double Spud with Copper Seal | Male NPS x Male NPS | Plated Ductile Iron

Designed for use in medium to high-pressure applications using steam, air, and fluids.
Specifications for Variant SKU: GDS-125 Kuriyama
Brand: Alfagomma
Series: GDS Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPS, 1-1/4in Male NPS
Material(s): Plated Ductile Iron
Seal Material(s): Copper
Features:
  • Designed for use in medium to high-pressure applications using steam, air, and fluids.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Used in conjunction with interlocking bolt clamps.
  • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds.
  • Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Material:
  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.
Maximum Service Temperature:
  • +450°F (+232°C)
Part Number Size
(in)		 Water Steam Air Weight
GDS-050 1/2" 600 PSI 250 PSI 600 PSI 0.40 lbs/ft
GDS-075 3/4" 600 PSI 250 PSI 600 PSI 1.32 lbs/ft
GDS-100 1" 600 PSI 250 PSI 400 PSI 1.32 lbs/ft
GDS-125 1-1/4" 600 PSI 250 PSI 400 PSI 1.41 lbs/ft
GDS-150 1-1/2" 600 PSI 250 PSI 350 PSI 1.41 lbs/ft
GDS-200 2" 600 PSI 250 PSI 350 PSI 1.92 lbs/ft
