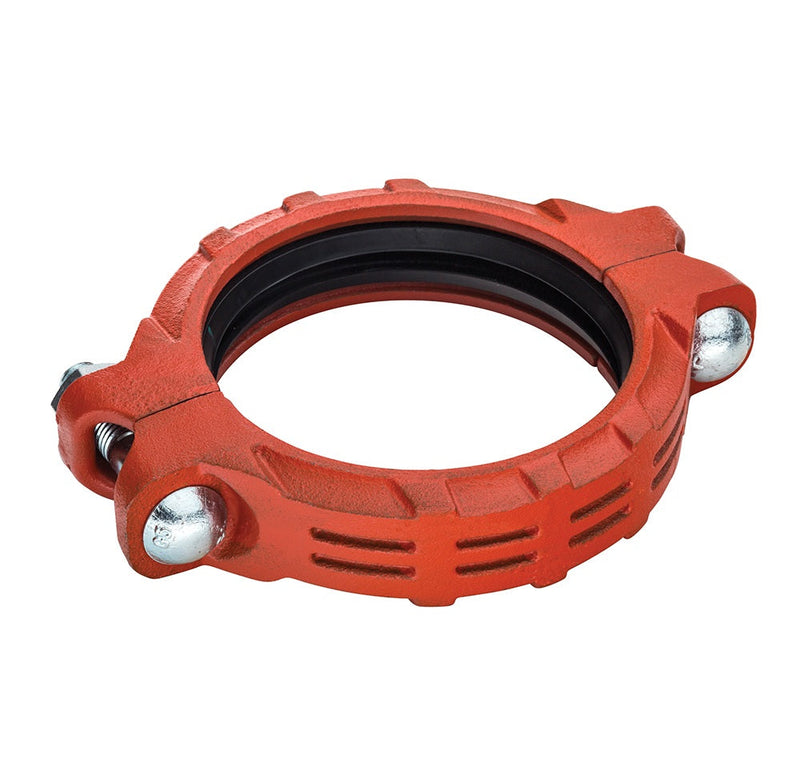

GEC-B600 by Kuriyama | GEC-B Series | Grooved End Coupling | 6" Size | Buna Gasket | Ductile Iron

GEC-B600 by Kuriyama | GEC-B Series | Grooved End Coupling | 6" Size | Buna Gasket | Ductile Iron

Save $27.21 Save $27.21
$109.72
$109.72 - $109.72
$109.72
$82.51
$82.51 - $82.51
$82.51

Kuriyama of America Inc.
Grooved End Coupling | GEC-B Series | Buna Gasket | Ductile Iron

Connect together grooved end pipes or hose connections. For use with AL-LDHC coupling or grooved end pipe.
Specifications for Variant SKU: GEC-B600 Kuriyama
Series: GEC-B Series
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: UL Listed

What are the Applications?

  • Connect together grooved end pipes or hose connections.
  • For use with AL-LDHC coupling or grooved end pipe.

What are the Features?

  • Underwriters laboratories listed.
  • Faster and easier than threaded, welded, or flanged connections.

What are the Materials?

  • Ductile Iron body painted orange.
  • Carbon Steel plated bolts and nuts.
  • Carbon Steel plated safety clip.

What is the Service Temperature Range?

  • BUNA Gasket: -40°F (-40°C) to +250°F (+121°C)
  • EPDM Gasket: -60°F (-51°C) to +300°F (+149°C)
Part Number
Buna Gasket		 Part Number
EPDM Gasket		 Size
(in)		 PSI Rating
at 70?F		 Weight
Each
(lbs)
GEC-B200 GEC-E200 2" 1000 PSI 2.50 lbs
GEC-B250 GEC-E250 2-1/2" 1000 PSI 3.45 lbs
GEC-B300 GEC-E300 3" 1000 PSI 3.80 lbs
GEC-B400 GEC-E400 4" 1000 PSI 5.60 lbs
GEC-B600 GEC-E600 6" 1000 PSI 10.05 lbs
GEC-B800 GEC-E800 8" 800 PSI 19.55 lbs
GEC-B1000 GEC-E1000 10" 800 PSI 26.15 lbs
GEC-B1200 GEC-E1200 12" 800 PSI 30.65 lbs
