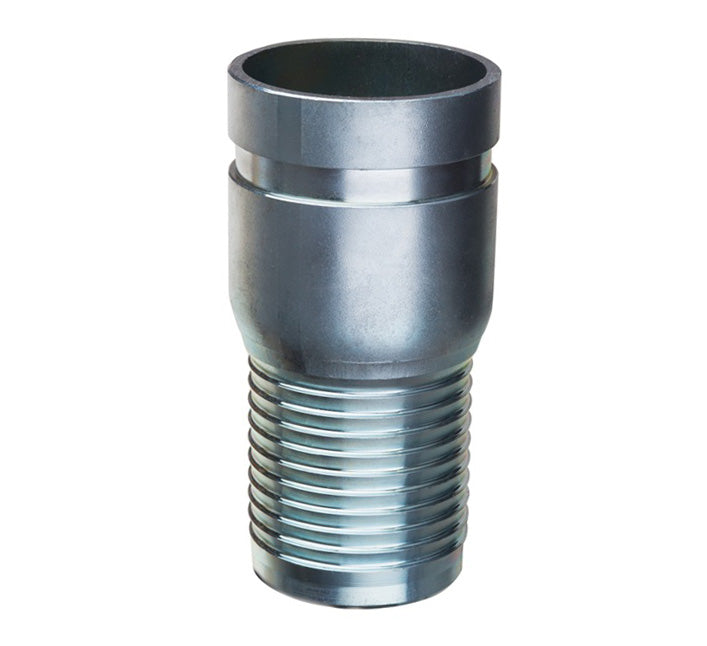

GEN800 by Kuriyama | GEN Series | Combination Hose Nipple | 8" Grooved End x 8" Hose Barb | Plain Steel

GEN800 by Kuriyama | GEN Series | Combination Hose Nipple | 8" Grooved End x 8" Hose Barb | Plain Steel

Save $45.54 Save $45.54
$181.55
$181.55 - $181.55
$181.55
$136.01
$136.01 - $136.01
$136.01

Kuriyama of America Inc.
Combination Hose Nipple | GEN Series | Grooved End x Hose Barb | Plain Steel

Versatile hose connectors designed to connect hose and pipes of the same thread size.

Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
Specifications for Variant SKU: GEN800 Kuriyama
Series: GEN Series
Shape (Orientation): Straight
Ends Configuration: 8in Grooved End, 8in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: ASTM A53 Grade B

What are the Features?

  • Versatile hose connectors designed to connect hose and pipes of the same thread size.
  • Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
  • Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.

What are the Materials?

  • Plain Steel - Complies with ASTM A53 B welded pipe.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
GEN100 1" 125 PSI 0.58 lbs
GEN125 1-1/4" 125 PSI 0.62 lbs
GEN150 1-1/2" 125 PSI 0.86 lbs
GEN200 2" 75 PSI 1.28 lbs
GEN250 2-1/2" 75 PSI 2.03 lbs
GEN300 3" 75 PSI 3.17 lbs
GEN400 4" 75 PSI 3.88 lbs
GEN600 6" 75 PSI 14.60 lbs
GEN800 8" 50 PSI 19.73 lbs
GEN1000 10" 50 PSI 26.14 lbs
GEN1200 12" 50 PSI 39.82 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
