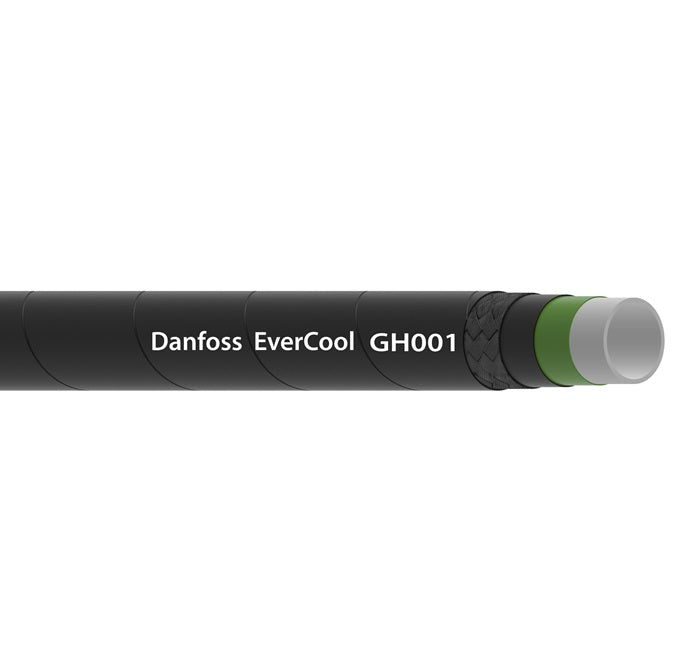

GH001-16 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J2064 Type E | 0.88" ID

GH001-16 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J2064 Type E | 0.88" ID

$13.91 - $13.91
$13.91
$13.91 - $13.91
$13.91

Aeroquip® by Danfoss
GH001 Series | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH001-16 Danfoss
Series: GH001 Series
Tubing Construction: Polyamide
Cover Construction: EPDM
Hose Properties:
Application: A/C systems for truck, bus, agriculture, construction equipment and refrigeration systems. SAE Rating: Exceeds: SAE J2064 Type E, Class 1
Tube: New dual extrusion technology polyamide Type E veneer. Reinforcement: Polyester Braid
Cover: Blended EPDM Operating Parameters: -40°F to +284°F (-40°C to +140°C)
R1234yf effusion <1kg/m2/yr at 80°C
R134a effusion <1.5kg/m2/yr at 80°C
Oils: POE, PAG, Mineral oil, Alkybenzene
Moisture ingression Class I
Benefits: -Extremely low permeation.
-Excellent heat resistance offering a higher functional temperature range than SAE J2064 Type C or E hoses.
-Ozone and UV resistant.
-Easy to install - significant reduction in potential hose damage. GH001 has maximum kink resistance, temperature resistance.
-SAE J2064 Type E veneer tube offers excellent oil and refrigerant compatibility
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum service
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft kPa in/Hg
GH001-4 5 4,8mm 0.19" 11,6mm 0.46" 35 bar 500 psi 140 bar 2000 psi 38,1mm 1.50" 0,100 kg/m 0.07 lbs/ft 94,8 kPa 28 in/Hg
GH001-6 8 7,9mm 0.31" 14,7mm 0.58" 35 bar 500 psi 140 bar 2000 psi 50,0mm 2.00" 0,135 kg/m 0.09 lbs/ft 94,8 kPa 28 in/Hg
GH001-8 10 10,3mm 0.41" 17,8mm 0.70" 35 bar 500 psi 140 bar 2000 psi 63,0mm 2.50" 0,177 kg/m 0.12 lbs/ft 94,8 kPa 28 in/Hg
GH001-10 12 12,7mm 0.50" 19,8mm 0.78" 35 bar 500 psi 140 bar 2000 psi 76,2mm 3.00" 0,223 kg/m 0.15 lbs/ft 94,8 kPa 28 in/Hg
GH001-12 16 15,9mm 0.63" 24,9mm 0.98" 35 bar 500 psi 140 bar 2000 psi 101,6mm 4.00" 0,269 kg/m 0.18 lbs/ft 94,8 kPa 28 in/Hg
GH001-16 19 22,4mm 0.88" 31,2mm 1.23" 35 bar 500 psi 140 bar 2000 psi 127,0mm 7.00" 0,430 kg/m 0.22 lbs/ft 94,8 kPa 28 in/Hg

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
