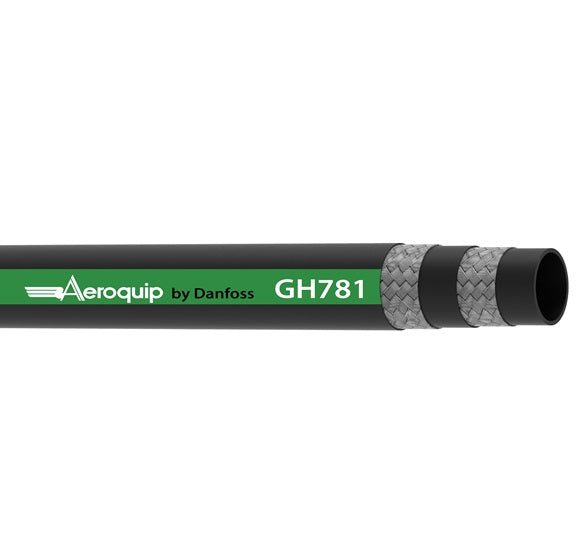

GH781-12 Aeroquip by Danfoss | MatchMate® Global Premium Double Wire Braid Hydraulic Hose | SAE 100R16 | 0.75" ID

$13.15

Aeroquip® by Danfoss
GH781 Series | MatchMate® Global Premium Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH781-12 Danfoss
Brand: Aeroquip
Series: GH781 Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.12in
MAWP: 3500
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS,Applicable MSHA Standards,BV,BWB,DNV,EN45545,EN857,ISO 11237-1,LR,MED,SAE 100R16 Type S,USCG
Hose Properties:
Application: Low and medium pressure hydraulic systems, petroleum and waterbased fluids, construction equipment, and agriculture equipment. SAE Rating: Exceeds: SAE 100R16 Type S, EN 857 2SC, ISO 18752, ISO 11237-1 Type 2SC performance
Other Ratings: MSHA Accepted, ABS Accepted, DNV Accepted Tube: Synthetic Rubber
Reinforcement: Double Wire Braid Cover: DURA-TUFF™ Synthetic Rubber
Temperature Range: -50°F to +260°F
(-46°C to +126°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH781-4 6 6,4mm 0.25" 13,9mm 0.55" 448 bar 6,500 psi 1792 bar 26000 psi 50,0mm 1.96" 0,33 kg/m 0.22 lbs/ft
GH781-6 10 9,5mm 0.38" 17,4mm 0.69" 400 bar 5,800 psi 1600 bar 23200 psi 65,0mm 2.55" 0,43 kg/m 0.29 lbs/ft
GH781-8 12 12,7mm 0.50" 20,9mm 0.82" 345 bar 5,000 psi 1380 bar 20000 psi 90,0mm 3.54" 0,58 kg/m 0.39 lbs/ft
GH781-10 16 15,9mm 0.62" 24,0mm 0.94" 276 bar 4,000 psi 1104 bar 16000 psi 100,0mm 3.94" 0,65 kg/m 0.44 lbs/ft
GH781-12 19 19,0mm 0.75" 27,9mm 1.10" 241 bar 3,500 psi 964 bar 14000 psi 120,0mm 4.72" 0,79 kg/m 0.53 lbs/ft
GH781-16 25 25,4mm 1.00" 35,9mm 1.41" 207 bar 3,000 psi 828 bar 12000 psi 150,0mm 5.90" 1,07 kg/m 0.72 lbs/ft
GH781-20 31 31,8mm 1.25" 43,4mm 1.71" 172 bar 2,500 psi 688 bar 10000 psi 210,0mm 8.26" 1,62 kg/m 1.09 lbs/ft
GH781-24 38 38,1mm 1.50" 51,5mm 2.03" 138 bar 2,000 psi 552 bar 8000 psi 250,0mm 9.84" 2,08 kg/m 1.40 lbs/ft
GH781-32 51 50,8mm 2.00" 63,9mm 2.52" 110 bar 1,600 psi 440 bar 6400 psi 315,0mm 12.40" 2,82 kg/m 1.90 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
