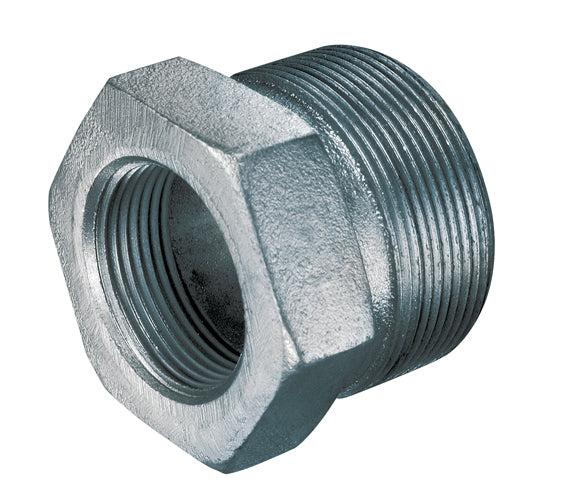

GJF-100 Alfagomma by Kuriyama | GJF Series | Ground Joint Female Spud with Copper Seal | 1" Female NPT x 1" Male NPS | Plated Ductile Iron

GJF-100 Alfagomma by Kuriyama | GJF Series | Ground Joint Female Spud with Copper Seal | 1" Female NPT x 1" Male NPS | Plated Ductile Iron

Save $7.13 Save $7.13
$17.89
$17.89 - $17.89
$17.89
$10.76
$10.76 - $10.76
$10.76

Alfagomma® by Kuriyama
GJF Series | Ground Joint Female Spud with Copper Seal | Female NPT x Male NPS | Plated Ductile Iron

Designed for use in medium to high-pressure applications using steam, air, and fluids.
Specifications for Variant SKU: GJF-100 Kuriyama
Brand: Alfagomma
Series: GJF Series
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Male NPS
Material(s): Plated Ductile Iron
Seal Material(s): Copper
Features:
  • Designed for use in medium to high-pressure applications using steam, air, and fluids.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Used in conjunction with interlocking bolt clamps.
  • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds.
  • Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Material:
  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.
Maximum Service Temperature:
  • +450°F (+232°C)
Part Number Size
(in)		 Water Steam Air Weight
GJF-050 1/2" 600 PSI 250 PSI 600 PSI 0.29 lbs/ft
GJF-075 3/4" 600 PSI 250 PSI 600 PSI 0.64 lbs/ft
GJF-100 1" 600 PSI 250 PSI 400 PSI 0.57 lbs/ft
GJF-125 1-1/4" 600 PSI 250 PSI 400 PSI 1.21 lbs/ft
GJF-150 1-1/2" 600 PSI 250 PSI 350 PSI 1.04 lbs/ft
GJF-200 2" 600 PSI 250 PSI 300 PSI 1.39 lbs/ft
GJF-250 2-1/2" 450 PSI 250 PSI 300 PSI 4.23 lbs/ft
GJF-300 3" 450 PSI 250 PSI 300 PSI 5.51 lbs/ft
GJF-400 4" 450 PSI 250 PSI 300 PSI 8.88 lbs/ft
