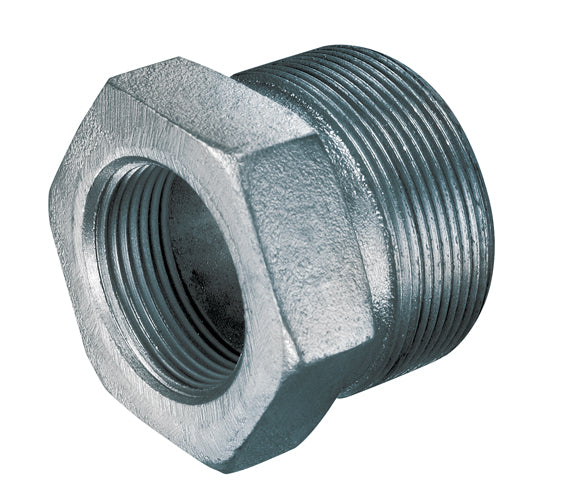

GJF-200 Alfagomma by Kuriyama | GJF Series | Ground Joint Female Spud with Copper Seal | 2" Female NPT x 2" Male NPS | Plated Ductile Iron

GJF-200 Alfagomma by Kuriyama | GJF Series | Ground Joint Female Spud with Copper Seal | 2" Female NPT x 2" Male NPS | Plated Ductile Iron

Save $9.77 Save $9.77
$27.49
$27.49 - $27.49
$27.49
$17.72
$17.72 - $17.72
$17.72

Alfagomma® by Kuriyama
GJF Series | Ground Joint Female Spud with Copper Seal | Female NPT x Male NPS | Plated Ductile Iron

Designed for use in medium to high-pressure applications using steam, air, and fluids.
Specifications for Variant SKU: GJF-200 Kuriyama
Brand: Alfagomma
Series: GJF Series
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Male NPS
Material(s): Plated Ductile Iron
Seal Material(s): Copper
Features:
  • Designed for use in medium to high-pressure applications using steam, air, and fluids.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Used in conjunction with interlocking bolt clamps.
  • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds.
  • Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Material:
  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.
Maximum Service Temperature:
  • +450°F (+232°C)
Part Number Size
(in)		 Water Steam Air Weight
GJF-050 1/2" 600 PSI 250 PSI 600 PSI 0.29 lbs/ft
GJF-075 3/4" 600 PSI 250 PSI 600 PSI 0.64 lbs/ft
GJF-100 1" 600 PSI 250 PSI 400 PSI 0.57 lbs/ft
GJF-125 1-1/4" 600 PSI 250 PSI 400 PSI 1.21 lbs/ft
GJF-150 1-1/2" 600 PSI 250 PSI 350 PSI 1.04 lbs/ft
GJF-200 2" 600 PSI 250 PSI 300 PSI 1.39 lbs/ft
GJF-250 2-1/2" 450 PSI 250 PSI 300 PSI 4.23 lbs/ft
GJF-300 3" 450 PSI 250 PSI 300 PSI 5.51 lbs/ft
GJF-400 4" 450 PSI 250 PSI 300 PSI 8.88 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
