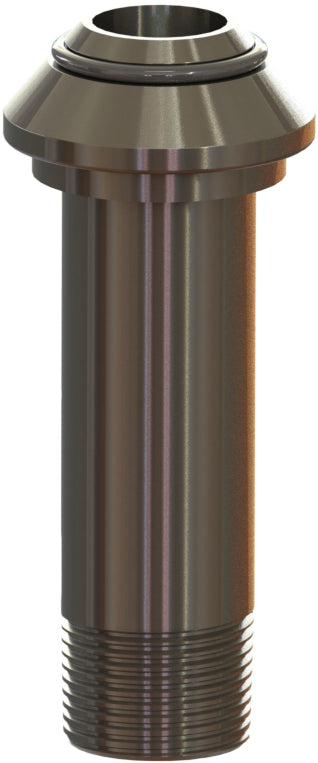

GJMS-3 by Campbell Fittings | Ground Joint Coupling | Male End | 3/4" Viton Seal x 3/4" Male NPT Thread | Viton® Seal | Straight | Plated Steel

GJMS-3 by Campbell Fittings | Ground Joint Coupling | Male End | 3/4" Viton Seal x 3/4" Male NPT Thread | Viton® Seal | Straight | Plated Steel

Save $17.87 Save $17.87
$44.68
$44.68 - $44.68
$44.68
$26.81
$26.81 - $26.81
$26.81

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Male End
Specifications for Variant SKU: GJMS-3 Campbell Fittings
Shape (Orientation): Straight
Material(s): Plated Steel
Seal Material(s): Viton
Recommended Use:
  • High-pressure steam and air
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number NPT
GJMS-3 3/4"
GJMS-4 1"
GJMS-6 1-1/2"
GJMS-8 2"
