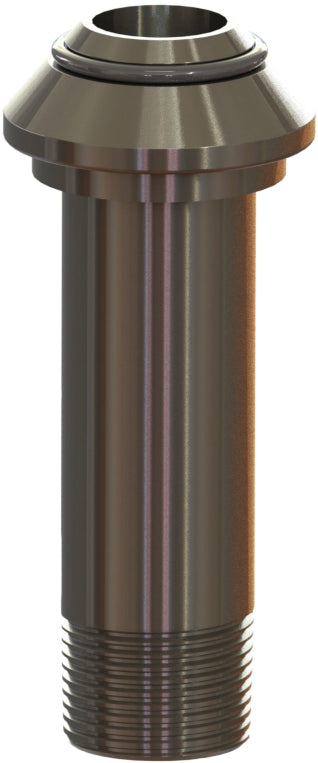

GJMS-6 by Campbell Fittings | Ground Joint Coupling | Male End | 1-1/2" Viton Seal x 1-1/2" Male NPT Thread | Viton® Seal | Straight | Plated Steel

GJMS-6 by Campbell Fittings | Ground Joint Coupling | Male End | 1-1/2" Viton Seal x 1-1/2" Male NPT Thread | Viton® Seal | Straight | Plated Steel

Save $38.27 Save $38.27
$95.68
$95.68 - $95.68
$95.68
$57.41
$57.41 - $57.41
$57.41

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Male End
Specifications for Variant SKU: GJMS-6 Campbell Fittings
Shape (Orientation): Straight
Material(s): Plated Steel
Seal Material(s): Viton
Recommended Use:
  • High-pressure steam and air
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number NPT
GJMS-3 3/4"
GJMS-4 1"
GJMS-6 1-1/2"
GJMS-8 2"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
