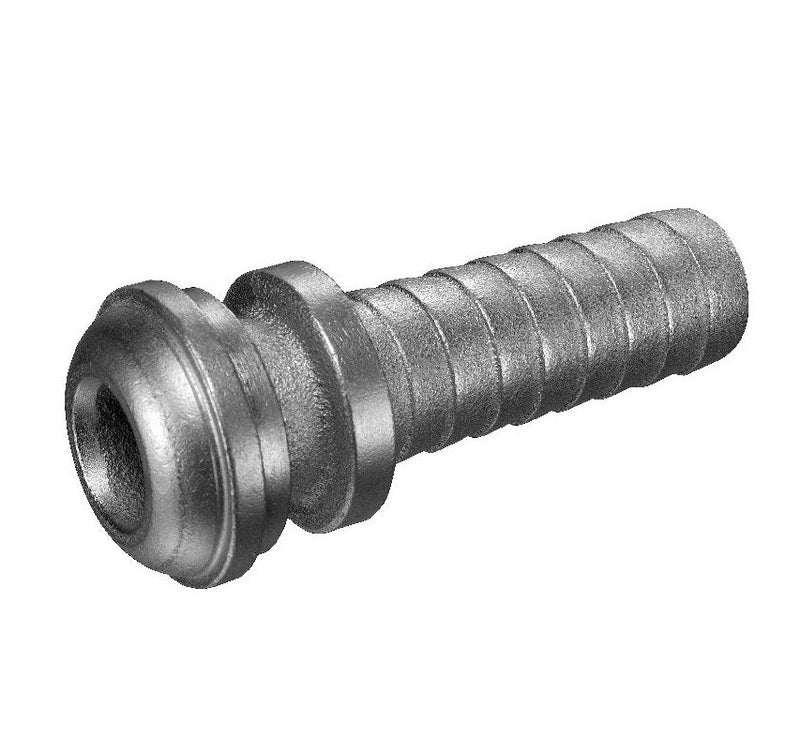

GJS-075 by Kuriyama | GJS Series | Ground Joint Hose Stem | 3/4" Size | Plated Ductile Iron

GJS-075 by Kuriyama | GJS Series | Ground Joint Hose Stem | 3/4" Size | Plated Ductile Iron

Save $6.02 Save $6.02
$11.58
$11.58 - $11.58
$11.58
$5.56
$5.56 - $5.56
$5.56

Kuriyama of America Inc.
GJS Series | Ground Joint Hose Stem | Plated Ductile Iron

Designed for use in medium to high-pressure applications using steam, air, and fluids.
Specifications for Variant SKU: GJS-075 Kuriyama
Series: GJS Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb
Material(s): Plated Ductile Iron
Applicable Specs & Approvals: ASTM A536 Grade 65/45/12

What are the Features?

  • Designed for use in medium to high-pressure applications using steam, air, and fluids.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Used in conjunction with interlocking bolt clamps.
  • Couplings with hose barbs come with an interlocking collar to connect with the interlocking bolt clamps.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.

What are the Materials?

  • Ductile iron plated.
  • ASTM A536, Grade 65/45/12.

What are the Specifications?

  • Maximum Service Temperature: +450°F (+232°C)
Part Number Size
(in)		 Water
(PSI)		 Steam
(PSI)		 Air
(PSI)		 Weight
Each
(lbs)
GJS-050 1/2" 600 PSI 250 PSI 600 PSI 0.18 lbs
GJS-075 3/4" 600 PSI 250 PSI 600 PSI 0.55 lbs
GJS-100 1" 600 PSI 250 PSI 400 PSI 0.81 lbs
GJS-125 1-1/4" 600 PSI 250 PSI 400 PSI 1.17 lbs
GJS-150 1-1/2" 600 PSI 250 PSI 350 PSI 1.30 lbs
GJS-200 2" 600 PSI 250 PSI 300 PSI 1.72 lbs
GJS-250 2-1/2" 450 PSI 250 PSI 300 PSI 3.70 lbs
GJS-300 3" 450 PSI 250 PSI 300 PSI 4.83 lbs
GJS-400 4" 450 PSI 250 PSI 300 PSI 8.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
