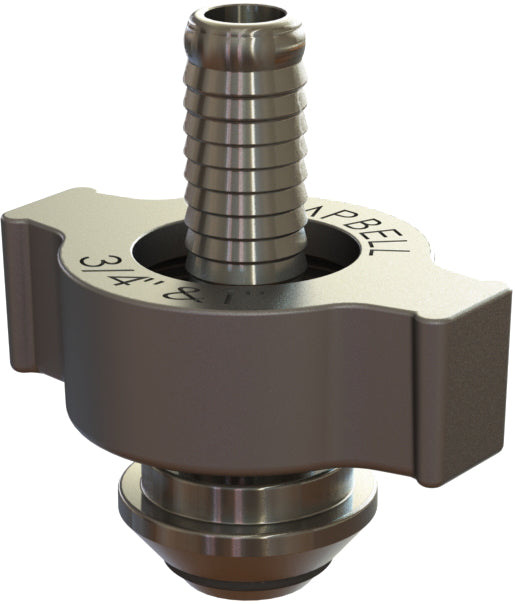

GJS-4 by Campbell Fittings | Ground Joint Coupling | Hose Stem | 1" Hose Size x 1" Hose Barb | Viton® Seal | Straight | Steel

Save $9.82 Save $9.82
Original price $24.55
Original price $24.55 - Original price $24.55
Original price $24.55
Current price $14.73
$14.73 - $14.73
Current price $14.73

by Campbell
VITON® Seal Ground Joint Couplings:VITON® Seal Hose Stem

Specifications for Variant SKU: GJS-4 Campbell Fittings
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): Steel
Seal Material(s): Viton
Recommended Use:
  • High-pressure steam and air
Recommended Hose Attachments:
  • Interlocking Ferrules
  • Interlocking U-bolt clamps
Features and Benefits:
  • Viton Seal Coupling pass 1000 hour MIL-H-29210 steam test.
  • Eliminates leaks with nut hand tightened.
  • Viton seal (formulated by DuPont for high pressure steam and air applications) is protected inside machined stem groove and by swivel nut, extending working life.
  • Spud does not contain plastic seat, extending working life.
  • Interchangeable with old-style domestic ground joint couplings.
  • Machined hose ends with smooth end detail to reduce potential failure due to abrasion - grips, seals, and protects hose.
  • Interlock groove locks ferrule into place for superior holding power.
Part Number Hose Size
GJS-2 1/2"
GJS-3 3/4"
GJS-4 1"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
