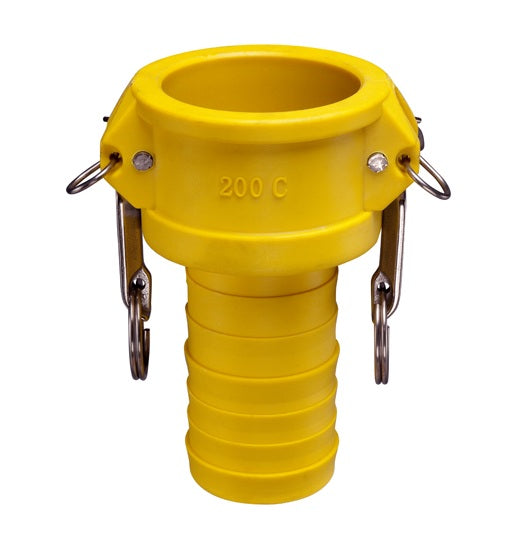

GRC200 by Kuriyama | GRC Series | Part C | Cam & Groove Fitting | 2" Coupler x 2" Hose Barb | Nylon

GRC200 by Kuriyama | GRC Series | Part C | Cam & Groove Fitting | 2" Coupler x 2" Hose Barb | Nylon

Save $7.93 Save $7.93
$22.11
$22.11 - $22.11
$22.11
$14.18
$14.18 - $14.18
$14.18

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | GRC Series | Part C | Coupler x Hose Barb | Nylon

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
Specifications for Variant SKU: GRC200 Kuriyama
Series: GRC Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): Nylon
Seal Material(s): EPDM

What are the Applications?

  • Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
  • Nylon has similar performance characteristics to polypropylene, but it can withstand higher temperatures, variable humidity, and has some additional chemical resistance versus the polypropylene.

What are the Features?

  • Nylon material is fiberglass reinforced for added strength and durability.
  • Good abrasion and chemical resistance.
  • Lightweight yet strong.
  • Precision molded to ensure consistency in form and function.

What are the Materials?

  • Fiberglass reinforced nylon.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Locking feature using safety clips to prevent disconnection during use.
  • Supplied 304 stainless steel handles, handle pins, pull rings, and safety clips.
  • All 4" size female couplers supplied with three handles to provide added stability.
  • EPDM gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
GRC100 1" 100 PSI 0.18 lbs
GRC150 1-1/2" 100 PSI 0.50 lbs
GRC200 2" 100 PSI 0.58 lbs
GRC300 3" 50 PSI 1.24 lbs
GRC400 4" 50 PSI 1.60 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
