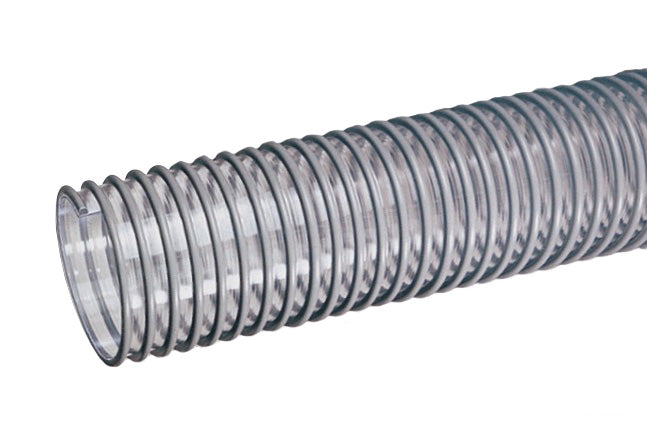

GT150X50 Tigerflex™ by Kuriyama | GT™ Series | PVC Ducting / Material Handling Hose | 1-1/2" ID | 1.82" OD | 50ft

GT150X50 Tigerflex™ by Kuriyama | GT™ Series | PVC Ducting / Material Handling Hose | 1-1/2" ID | 1.82" OD | 50ft Length

Save $83.22 Save $83.22
$192.42
$192.42 - $192.42
$192.42
$109.20
$109.20 - $109.20
$109.20

Tigerflex™ by Kuriyama
GT™ Series | PVC Ducting/Material Handling Hose

Suitable for light-duty material handling, dust collection, ventilation, and fume removal, as well as for use in drain lines and cable protection.

Made in the USA.

Package Quantity: 50 Foot

Specifications for Variant SKU: GT150X50 Kuriyama | 50 |
Brand: Tigerflex
Series: GT Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1.50in - 1-1/2in
Outer Diameter: 1.82in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
General Applications:
  • Cable protection
  • Drain lines
  • Ducting, ventilation and fume removal
  • Dust collection
  • Material handling - light duty
Construction:
  • PVC tube with rigid PVC helix.
Specifications:
  • Phthalate Free
  • RoHS
Service Temperature Range:
  • -4°F (-20°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Phthalate Free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F in (lbs/ft)
GT150X50 GT150X100 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in Hg 14 in Hg 1" 0.23 lbs/ft
GT200X50 GT200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in Hg 12 in Hg 2" 0.30 lbs/ft
- GT238X100 2-3/8" 60.6mm 2.76" 70.1mm 12 PSI 6 PSI 20 in Hg 11 in Hg 2" 0.38 lbs/ft
GT250X50 GT250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in Hg 10 in Hg 2" 0.39 lbs/ft
GT300X50 GT300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 3" 0.50 lbs/ft
GT350X50 GT350X100 3-1/2" 88.9mm 4.02" 102.0mm 9 PSI 4 PSI 15 in Hg 8 in Hg 3" 0.68 lbs/ft
GT400X50 GT400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.77 lbs/ft
GT500X50 GT500X100 5" 127.0mm 5.50" 139.7mm 7 PSI 3 PSI 10 in Hg 6 in Hg 5" 0.91 lbs/ft
GT600X50 GT600X100 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.08 lbs/ft
GT800X50 - 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 1.74 lbs/ft
GT1000X50 - 10" 254.0mm 11.68" 296.6mm 2 PSI - 2 in Hg - 10" 2.70 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
