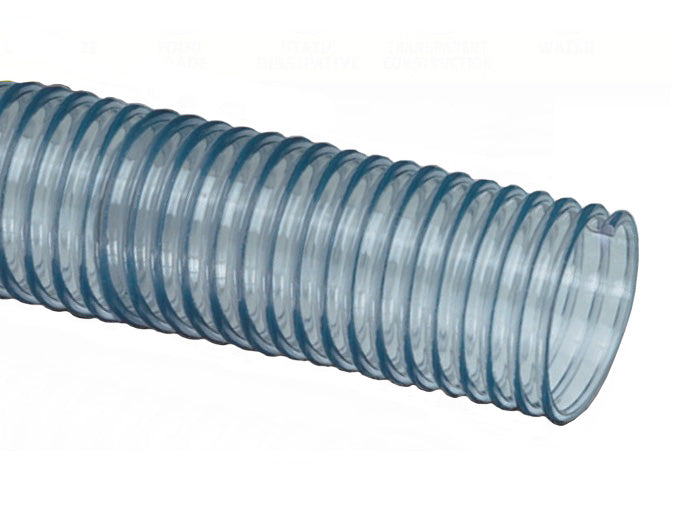

GTF150X100 Tigerflex™ by Kuriyama | GTF™ Series | Food Grade PVC Ducting / Material Handling Hose | 1-1/2" ID | 1.82" OD | 100ft Length

Save $101.70

$371.10

$371.10 - $371.10

$371.10

$269.40

$269.40 - $269.40

$269.40

Tigerflex™ by Kuriyama
GTF™ / GTFE™ Series | Food Grade PVC Ducting/Material Handling Hose

Ideal for ducting, ventilation, and fume removal, as well as light-duty material handling, food-grade blower systems, and pharmaceutical product transfer.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: GTF150X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	GTF Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	1.50in - 1-1/2in
Outer Diameter:	1.82in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, BSE/TSE, Applicable FDA Requirements, RoHS Compliant, Applicable USDA Standards

General Applications:
Ducting, ventilation and fume removal Food grade blower and ducting systems Material handling - light duty Pharmaceutical product transfer
Construction:
PVC tube with rigid PVC helix. GTFE Series ONLY: Grounding wire.
Specifications:
3A BSE/TSE FDA Phthalate Free RoHS USDA
Service Temperature Range:
-4°F (-20°C) to +150°F (+65°C)* *Actual service temperature range is application dependent
Features and Advantages:
Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants. Grounding Wire (GTFE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-tohandle. Phthalate free.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.

GTF™ Series
Part Number 50ft Length	Part Number 100ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	Part Number 100ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
-	GTF150X100	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in Hg	14 in Hg	1"	0.23 lbs/ft
GTF200X50	GTF200X100	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in Hg	12 in Hg	2"	0.30 lbs/ft
-	GTF250X100	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in Hg	10 in Hg	2"	0.39 lbs/ft
GTF300X50	GTF300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in Hg	10 in Hg	3"	0.50 lbs/ft
GTF400X50	GTF400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in Hg	7 in Hg	3"	0.77 lbs/ft
GTF600X50	-	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in Hg	5 in Hg	6"	1.08 lbs/ft
GTF800X50	-	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in Hg	3 in Hg	8"	1.74 lbs/ft

GTFE™ Series \| with Grounding Wire
Part Number 50ft Length	Part Number 100ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius at 68°F	Weight
Part Number 50ft Length	Part Number 100ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	in	(lbs/ft)
-	GTFE150X100	1-1/2"	38.1mm	1.82"	46.2mm	20 PSI	7 PSI	22 in Hg	14 in Hg	1"	0.23 lbs/ft
-	GTFE200X100	2"	50.8mm	2.39"	60.8mm	15 PSI	6 PSI	21 in Hg	12 in Hg	2"	0.30 lbs/ft
-	GTFE250X100	2-1/2"	63.5mm	2.89"	73.4mm	10 PSI	5 PSI	19 in Hg	10 in Hg	2"	0.39 lbs/ft
GTFE300X50	GTFE300X100	3"	76.2mm	3.46"	87.9mm	10 PSI	5 PSI	18 in Hg	10 in Hg	3"	0.50 lbs/ft
GTFE400X50	GTFE400X100	4"	101.6mm	4.50"	114.3mm	8 PSI	4 PSI	13 in Hg	7 in Hg	3"	0.77 lbs/ft
GTFE600X50	-	6"	152.4mm	6.54"	166.1mm	6 PSI	3 PSI	7 in Hg	5 in Hg	6"	1.08 lbs/ft
GTFE800X50	-	8"	203.2mm	8.59"	218.2mm	4 PSI	2 PSI	5 in Hg	3 in Hg	8"	1.74 lbs/ft
