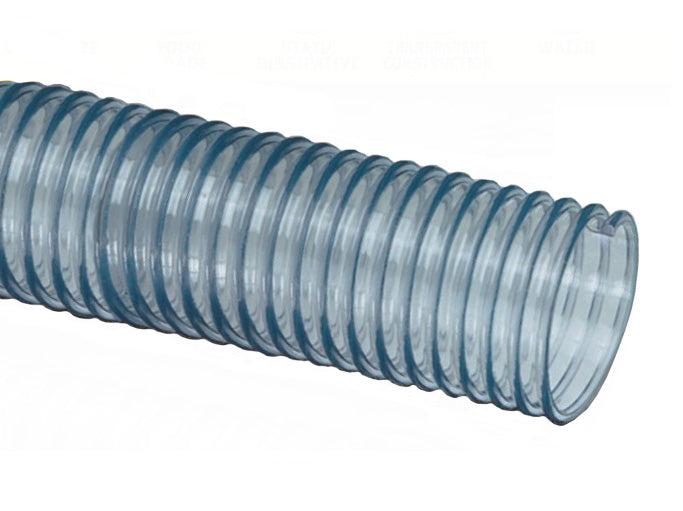

GTF400X50 Tigerflex™ by Kuriyama | GTF™ Series | Food Grade PVC Ducting / Material Handling Hose | 4" ID | 4.50" OD | 50ft Length

GTF400X50 Tigerflex™ by Kuriyama | GTF™ Series | Food Grade PVC Ducting / Material Handling Hose | 4" ID | 4.50" OD | 50ft Length

Save $239.56 Save $239.56
$650.56
$650.56 - $650.56
$650.56
$411.00
$411.00 - $411.00
$411.00

Tigerflex™ by Kuriyama
GTF™ / GTFE™ Series | Food Grade PVC Ducting/Material Handling Hose

Ideal for ducting, ventilation, and fume removal, as well as light-duty material handling, food-grade blower systems, and pharmaceutical product transfer.

Made in the USA.

Package Quantity: 50 Foot

Specifications for Variant SKU: GTF400X50 Kuriyama | 50 |
Brand: Tigerflex
Series: GTF Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.50in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, BSE/TSE, Applicable FDA Requirements, RoHS Compliant, Applicable USDA Standards
General Applications:
  • Ducting, ventilation and fume removal
  • Food grade blower and ducting systems
  • Material handling - light duty
  • Pharmaceutical product transfer
Construction:
  • PVC tube with rigid PVC helix.
    GTFE Series ONLY: Grounding wire.
Specifications:
  • 3A
  • BSE/TSE
  • FDA
  • Phthalate Free
  • RoHS
  • USDA
Service Temperature Range:
  • -4°F (-20°C) to +150°F (+65°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) (GTF only) for use in meat and poultry plants.
  • Grounding Wire (GTFE only) - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Easy Slide Helix - Exposed rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-tohandle.
  • Phthalate free.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
GTF™ Series
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
- GTF150X100 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in Hg 14 in Hg 1" 0.23 lbs/ft
GTF200X50 GTF200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in Hg 12 in Hg 2" 0.30 lbs/ft
- GTF250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in Hg 10 in Hg 2" 0.39 lbs/ft
GTF300X50 GTF300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 3" 0.50 lbs/ft
GTF400X50 GTF400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.77 lbs/ft
GTF600X50 - 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.08 lbs/ft
GTF800X50 - 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 1.74 lbs/ft
GTFE™ Series | with Grounding Wire
Part Number
50ft Length		 Part Number
100ft Length		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
Min. Bend
Radius
at 68°F		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 in (lbs/ft)
- GTFE150X100 1-1/2" 38.1mm 1.82" 46.2mm 20 PSI 7 PSI 22 in Hg 14 in Hg 1" 0.23 lbs/ft
- GTFE200X100 2" 50.8mm 2.39" 60.8mm 15 PSI 6 PSI 21 in Hg 12 in Hg 2" 0.30 lbs/ft
- GTFE250X100 2-1/2" 63.5mm 2.89" 73.4mm 10 PSI 5 PSI 19 in Hg 10 in Hg 2" 0.39 lbs/ft
GTFE300X50 GTFE300X100 3" 76.2mm 3.46" 87.9mm 10 PSI 5 PSI 18 in Hg 10 in Hg 3" 0.50 lbs/ft
GTFE400X50 GTFE400X100 4" 101.6mm 4.50" 114.3mm 8 PSI 4 PSI 13 in Hg 7 in Hg 3" 0.77 lbs/ft
GTFE600X50 - 6" 152.4mm 6.54" 166.1mm 6 PSI 3 PSI 7 in Hg 5 in Hg 6" 1.08 lbs/ft
GTFE800X50 - 8" 203.2mm 8.59" 218.2mm 4 PSI 2 PSI 5 in Hg 3 in Hg 8" 1.74 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
