GW26-12x16 Couplamatic GW Series Coupling - JIC 37° - 90° Female Swivel - 3/4" Hose ID - 1-5/16x12 Thread

GW26-12x16 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-5/16x12 Thread JIC 37° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $31.42 Save $31.42
$78.55
$78.55 - $78.55
$78.55
$47.13
$47.13 - $47.13
$47.13

Couplamatic Systems Inc.
GW Series - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: GW26-12x16 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
GW Series — 100R12 No-Skive Spiral

GW26 and GW31 GW Series — O-Ring Face Seal (ORF), Female Swivel

The GW Series O-Ring Face Seal female swivel couplings: GW26 straight and GW31 45° elbow, both no-skive hose ends for SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly.
  • Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2

Which sizes are available in the GW26 straight?

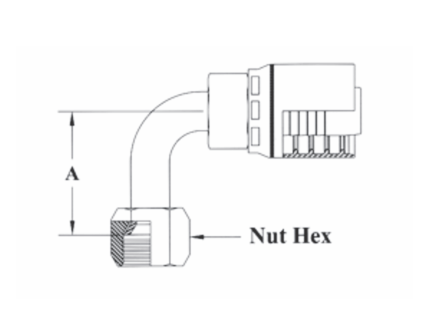

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW26-8x8 1/2" 1/2" 3/4x16 1.15" 7/8" 43008U-668
GW26-8x10 1/2" 5/8" 7/8x14 1.23" 1" 43008U-670
GW26-12x12 3/4" 3/4" 1-1/16x12 1.88" 1-1/4" 43012U-672
GW26-12x16 3/4" 1" 1-5/16x12 2.25" 1-1/2" —
GW26-16x16 1" 1" 1-5/16x12 2.66" 1-1/2" 43016U-676
GW26-20x20 1-1/4" 1-1/4" 1-5/8x12 3.31" 2" 43020U-677
GW26-24x24 1-1/2" 1-1/2" 1-7/8x12 3.95" 2-1/4" 43024U-678
GW26-32x32 2" 2" 2-1/2x12 4.64" 2-7/8" —
3

Which sizes are available in the GW31 45° elbow?
Part Number Hose ID Tube Size Thread Size A-Drop Inches Hex Size
GW31-8x8 1/2" 1/2" 13/16x16 0.59 15/16"
GW31-8x10 1/2" 5/8" 1x14 0.68 1-1/8"
GW31-12x12 3/4" 3/4" 1-3/16x12 0.84 1-3/8"
GW31-12x16 3/4" 1" 1-7/16x12 1.14 1-5/8"
GW31-16x16 1" 1" 1-7/16x12 1.14 1-5/8"
GW31-20x20 1-1/4" 1-1/4" 1-11/16x12 1.07 1-7/8"
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. GW31-10x10 and GW31-16x20 appear in the manufacturer catalogue but are not currently stocked, so they are not listed above.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
