GW26-32x32 Couplamatic GW Series Coupling - JIC 37° - 90° Female Swivel - 2" Hose ID - 2-1/2x12 Thread

GW26-32x32 by Couplamatic | GW Series Coupling | 2" Hose ID x 2-1/2x12 Thread JIC 37° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $128.22 Save $128.22
$320.55
$320.55 - $320.55
$320.55
$192.33
$192.33 - $192.33
$192.33

Couplamatic Systems Inc.
GW Series - JIC 37° - 90° Female Swivel
Specifications for Variant SKU: GW26-32x32 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 2in Female JIC, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

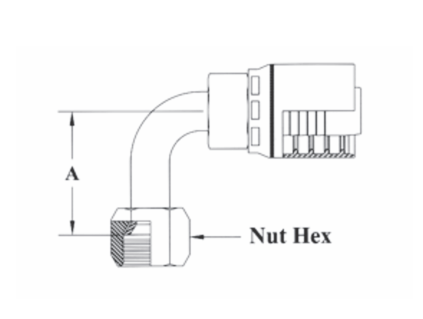

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead 430U
GW26-8x8 1/2" 1/2" 3/4x16 1.15" 7/8" 43008U-668
GW26-8x10 1/2" 5/8" 7/8x14 1.23" 1" 43008U-670
GW26-12x12 3/4" 3/4" 1-1/16x12 1.88" 1-1/4" 43012U-672
GW26-12x16 3/4" 1" 1-5/16x12 2.25" 1-1/2" -
GW26-16x16 1" 1" 1-5/16x12 2.66" 1-1/2" 43016U-676
GW26-20x20 1-1/4" 1-1/4" 1-5/8x12 3.31" 2" 43020U-677
GW26-24x24 1-1/2" 1-1/2" 1-7/8x12 3.95" 2-1/4" 43024U-678
GW26-32x32 2" 2" 2-1/2x12 4.64" 2-7/8" -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
