GW46-12X12 Couplamatic GW Series Coupling - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP

GW46-12X12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x G-3/4-14 Thread Female Swivel | 3/4" BSPP | 90° Elbow | Trivalent Zinc Plating

Save $18.09

$45.23

$45.23 - $45.23

$45.23

$27.14

$27.14 - $27.14

$27.14

Couplamatic Systems Inc.
GW Series - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel

Specifications for Variant SKU: GW46-12X12 Couplamatic
Series:	GW Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female BSPP, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating G. as part of thread size is ISO designation for parallel thread

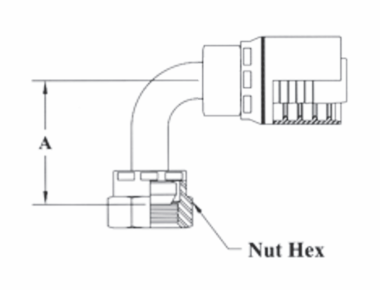

Part Number	Hose ID	BSPP Size	Thread Size	A-Drop Inches	Nut Hex
GW46-12x12	3/4"	3/4"	G-3/4-14	2.55"	1-1/4"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
