GW50-24x24 Couplamatic GW Series Coupling - Code 61 Split Flange - 45° Bend - 1-1/2" Hose ID - 1-1/2" Flange Size

GW50-24x24 by Couplamatic | GW Series Coupling | 1-1/2" Hose ID x 1-1/2" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating

Save $6.87

$68.66

$68.66 - $68.66

$68.66

$61.79

$61.79 - $61.79

$61.79

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - 45° Bend

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GW50-24x24 Couplamatic
Series:	GW Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Code 61 Flange, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

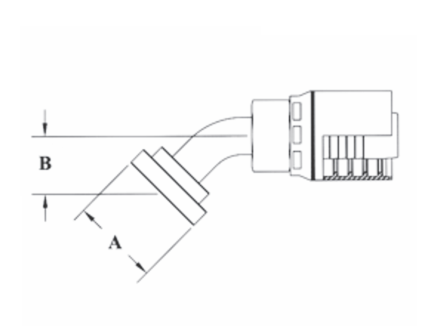

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Weatherhead 430U
GW50-8x8	1/2"	1/2"	1.19"	0.78"	43008U-G41
GW50-8x12	1/2"	3/4"	1.50"	0.82"	43008U-G42
GW50-12x12	3/4"	3/4"	1.50"	1.00"	43012U-G42
GW50-12x16	3/4"	1"	1.75"	1.00"	43012U-G46
GW50-16x16	1"	1"	1.75"	1.12"	43016U-G46
GW50-16x20	1"	1-1/4"	2.00"	1.12"	43016U-G50
GW50-20x20	1-1/4"	1-1/4"	2.00"	1.15"	43020U-G50
GW50-20x24	1-1/4"	1-1/2"	2.38"	1.50"	43020U-G54
GW50-24x24	1-1/2"	1-1/2"	2.38"	1.41"	43024U-G54
GW50-32x32	2"	2"	2.81"	2.08"	43032U-G62

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
