GW81-20x20 Couplamatic GW Series Coupling - Extra Heavy Duty Flange - 45° Bend - 1-1/4" Hose ID - 1-1/4" Flange Size (For use on Caterpillar® Equipment)

GW81-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | For use on Caterpillar® Equipment

Save $41.76 Save $41.76
$104.40
$104.40 - $104.40
$104.40
$62.64
$62.64 - $62.64
$62.64

Couplamatic Systems Inc.
GW Series - Extra Heavy Duty Flange - 45° Bend (For use on Caterpillar® Equipment)
Specifications for Variant SKU: GW81-20x20 Couplamatic
Series: GW Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Caterpillar Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

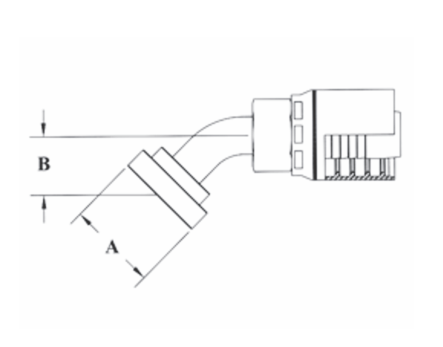

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches
GW81-12x12 3/4" 3/4" 1.62" 1.25"
GW81-16x16 1" 1" 1.88" 1.40"
GW81-20x20 1-1/4" 1-1/4" 2.12" 1.50
