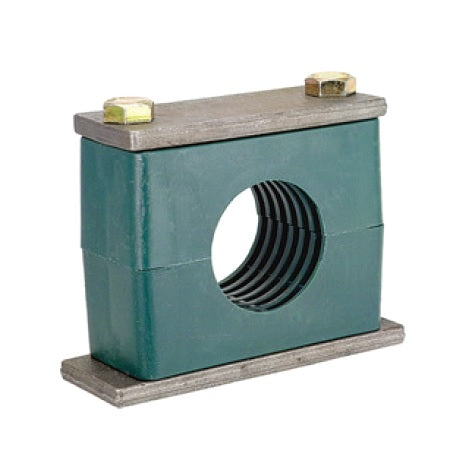

H3008S-SS ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/2" Tube | Polypropylene/304 Stainless Steel

H3008S-SS by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/2" Tube | Polypropylene/304 Stainless Steel

Save $3.19 Save $3.19
$31.90
$31.90 - $31.90
$31.90
$28.71
$28.71 - $28.71
$28.71

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Weld Mount - Polypropylene (Green) Cushion
Specifications for Variant SKU: H3008S-SS ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.5
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
H3004S-SS H3009S-SS 1/4" 3/8-16 x 1-3/4
H3006S-SS H3011S-SS 3/8" 3/8-16 x 1-3/4
H3008S-SS H4014S-SS 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010S-SS - 5/8" 3/8-16 x 1-3/4
H4012S-SS H4017S-SS 3/4" 3/8-16 x 2-1/4
H4015S-SS - 7/8" 3/8-16 x 2-1/4
H4016S-SS H5021S-SS 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020S-SS H5027S-SS 1-1/4" 3/8-16 x 2-3/4
H5024S-SS H6030S-SS 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028S-SS - 1-3/4" 1/2-13 x 4
H6032S-SS H6038S-SS 2" 1/2-13 x 4
H6034S-SS - 2-1/4" 1/2-13 x 4
H6040S-SS H7046S-SS 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044S-SS - 2-3/4" 5/8-11 x 5-1/4
H7050S-SS H7056S-SS 3" 5/8-11 x 5-1/4
H7057S-SS - 3-1/2" 5/8-11 x 5-1/4
- H8072S-SS 4" M20 x 190mm
- H9089S-SS 5" M24 x 220mm
- H3009S-SS 6" M24 x 220mm
