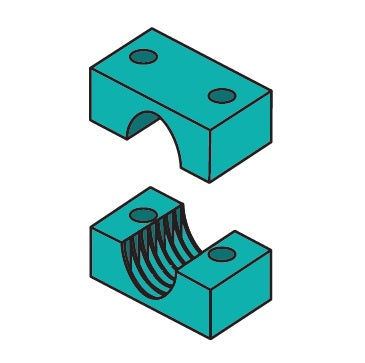

H4015C ZSi-Foster | Beta Clamp | Heavy Series | For 7/8" Tube Cushion ONLY | Polypropylene

H4015C by ZSi-Foster | Beta Clamp | Heavy Series | For 7/8" Tube | Cushion ONLY | Polypropylene

Save $3.35 Save $3.35
$5.64
$5.64 - $5.64
$5.64
$2.29
$2.29 - $2.29
$2.29

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Polypropylene Cushion ONLY
Specifications for Variant SKU: H4015C ZSI-Foster
Series: Heavy Series
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Cushion: Polypropylene
Cushion for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007C 1/8" 3/8-16 x 1-3/4
H3004C H3009C 1/4" 3/8-16 x 1-3/4
H3006C H3011C 3/8" 3/8-16 x 1-3/4
H3008C H4014C 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010C - 5/8" 3/8-16 x 1-3/4
H4012C H4017C 3/4" 3/8-16 x 2-1/4
H4015C - 7/8" 3/8-16 x 2-1/4
H4016C H5021C 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020C H5027C 1-1/4" 3/8-16 x 2-3/4
H5024C H6030C 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028C - 1-3/4" 1/2-13 x 4
H6032C H6038C 2" 1/2-13 x 4
H6034C - 2-1/4" 1/2-13 x 4
H6040C H7046C 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044C - 2-3/4" 5/8-11 x 5-1/4
H7050C H7056C 3" 5/8-11 x 5-1/4
H7057C - 3-1/2" 5/8-11 x 5-1/4
H8072C - 4" M20 x 190mm
H9089C - 5" M24 x 220mm
H9106C - 6" M24 x 220mm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
