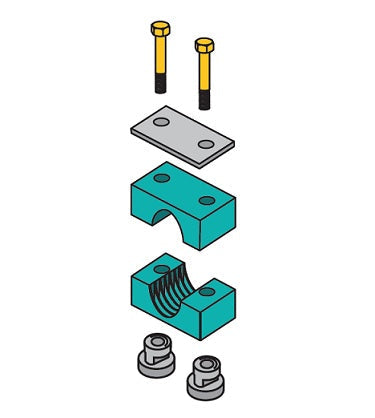

H4015R ZSi-Foster | Rail Mount Beta Clamp | Heavy Series | For 7/8" Tube | Polypropylene/Steel

H4015R by ZSi-Foster | Rail Mount Beta Clamp | Heavy Series | For 7/8" Tube | Polypropylene/Steel

Save $1.34 Save $1.34
$13.39
$13.39 - $13.39
$13.39
$12.05
$12.05 - $12.05
$12.05

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Rail Mount - Polypropylene (Green) Cushion
Specifications for Variant SKU: H4015R ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.875
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:
Assembly Includes:
Quantity Description
2 Each C-Rail Nuts
1 Each Cover Plate
2 Each Hex Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007R 1/8" 3/8-16 x 1-3/4
H3004R H3009R 1/4" 3/8-16 x 1-3/4
H3006R H3011R 3/8" 3/8-16 x 1-3/4
H3008R H4014R 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010R - 5/8" 3/8-16 x 1-3/4
H4012R H4017R 3/4" 3/8-16 x 2-1/4
H4015R - 7/8" 3/8-16 x2-1/4
H4016R H5021R 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020R H5027R 1-1/4" 3/8-16 x2-3/4
H5024R H6030R 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028R - 1-3/4" 1/2-13 x 4
H6032R H6038R 2" 1/2-13 x 4
H6034R - 2-1/4" 1/2-13 x 4
H6040R - 2-1/2" 1/2-13 x 4
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
