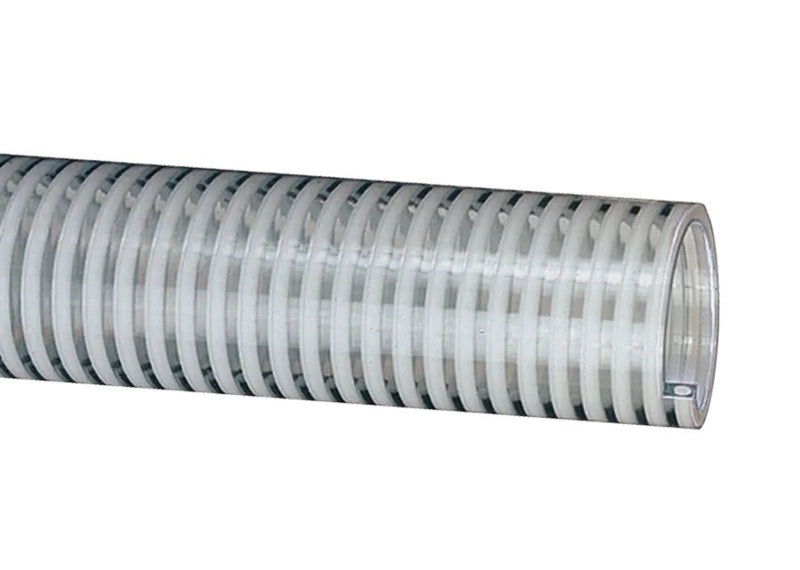

H500X100 Tigerflex® by Kuriyama | H™ Series | Standard-Duty Liquid Suction Hose | PVC | 5" ID | 5.58" OD | 100ft Length

H500X100 Tigerflex® by Kuriyama | H™ Series | Standard-Duty Liquid Suction Hose | PVC | 5" ID | 5.58" OD | 100ft Length

$0.00 - $0.00
$0.00
$1,387.80
$1,387.80 - $1,387.80
$1,387.80
p>Kuriyama of America Inc.
Tigerflex® | H™ Series | Standard-Duty Liquid Suction Hose | PVC

For agricultural, mining, and construction use.

Hose handles liquid fertilizer, irrigation and air seeder lines, drain lines, dewatering and trash pumps, rock dusting, and standard-duty water suction.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: H500X100 Kuriyama | 100 |
Brand: Tigerflex
Series: H Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.58in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Standard-Duty PVC Suction Hose

Kuriyama Tigerflex™ H Series

Transparent PVC suction hose designed for agricultural liquid fertilizer, irrigation, dewatering, mining and other standard-duty liquid-transfer applications.

◎

See the Flow

Transparent construction provides visual confirmation

⚙

PVC Helix

Rigid reinforcement supports suction service

✓

Easy Banding

Smooth cover on sizes from 3/4 inch through 5 inches

★

Made in USA

Manufactured in the United States

1

What is this product used for?
  • Agricultural liquid fertilizer
  • Air seeder lines
  • Drain lines
  • Irrigation lines
  • Mining applications
  • Rental and construction dewatering pumps
  • Trash pumps
  • Rock dusting
  • Standard-duty water suction
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Construction

Transparent PVC suction hose

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Compliance

Phthalate free and RoHS

Country of Origin

Made in the USA

3

What are the main product features?
  • Transparent Construction — See-the-flow design allows visual confirmation of material movement.
  • Smooth Outer Cover on 3/4-Inch Through 5-Inch Sizes — Provides an increased pressure rating and a smooth surface for banding.
  • Convoluted Outer Cover on the 6-Inch Size — Provides increased hose flexibility.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
H075X100 3/4" 19.0 1.01" 25.6 110 PSI 70 PSI 28 in Hg 26 in Hg 3" 100 0.19
H100X100 1" 25.4 1.26" 32.0 85 PSI 60 PSI 28 in Hg 26 in Hg 3" 100 0.26
H125X100 1-1/4" 31.7 1.56" 39.6 85 PSI 60 PSI 28 in Hg 24 in Hg 4" 100 0.35
H150X100 1-1/2" 38.1 1.83" 46.5 70 PSI 50 PSI 28 in Hg 24 in Hg 5" 100 0.48
H200X100 2" 50.8 2.32" 59.0 65 PSI 45 PSI 28 in Hg 24 in Hg 7" 100 0.66
H200X200 2" 50.8 2.32" 59.0 65 PSI 45 PSI 28 in Hg 24 in Hg 7" 200 0.66
H250X100 2-1/2" 63.5 2.87" 73.0 65 PSI 45 PSI 28 in Hg 24 in Hg 8" 100 0.87
H300X100 3" 76.2 3.43" 87.0 60 PSI 40 PSI 28 in Hg 22 in Hg 10" 100 1.24
H300X200 3" 76.2 3.43" 87.0 60 PSI 40 PSI 28 in Hg 22 in Hg 10" 200 1.24
H400X100 4" 101.6 4.50" 114.7 50 PSI 35 PSI 28 in Hg 22 in Hg 15" 100 1.85
H500X100 5" 127.0 5.58" 141.3 45 PSI 30 PSI 28 in Hg 24 in Hg 22" 100 2.42
H600X100 6" 152.4 6.75" 171.4 40 PSI 25 PSI 28 in Hg 20 in Hg 30" 100 3.39
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100- and 200-foot lengths, depending on hose size.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
